Description
FIXED IND 1.2MH 240MA 4.04 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for RL875-122K.
RL875-122K has an inductance value of 1.2 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
RL875-122K is rated for 240 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
RL875-122K lists a DC resistance of 4.04Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.

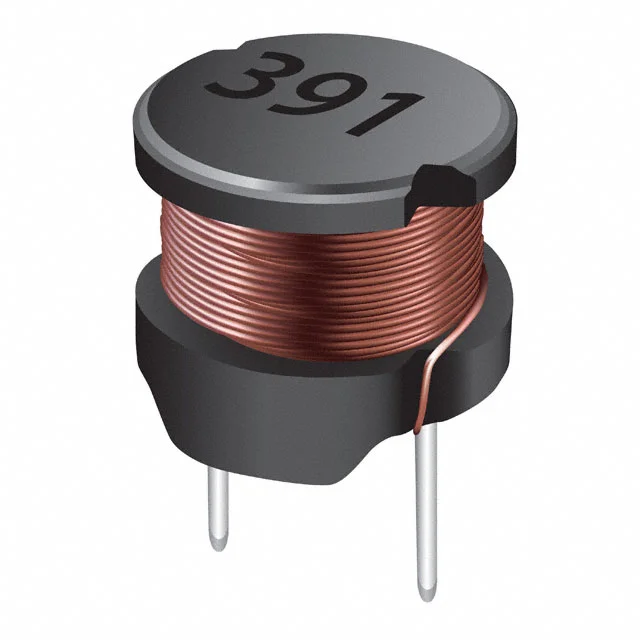

RL875-122K uses a package or case of Radial, Vertical Cylinder (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from RL875-122K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1.2 mH |
| Tolerance | ±10% |
| Current Rating | 240 mA |
| DC Resistance (DCR) | 4.04Ohm Max |
| Operating Temperature | -30°C ~ 100°C |
| Dimensions | 0.307" Dia (7.80mm) |
| Case / Size | Radial, Vertical Cylinder (Open) |
| Package / Case | Radial, Vertical Cylinder (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1.2MH 240MA 4.04 OHM |
| Series | RL875 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.217" (5.50mm) |
