Description

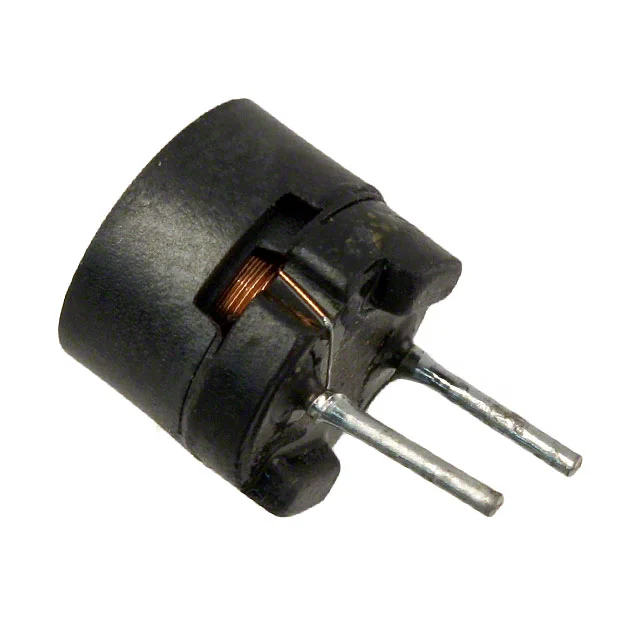

FIXED IND 1MH 230MA 2.72 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for RL875S-102K-RC.
RL875S-102K-RC has an inductance value of 1 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
RL875S-102K-RC is rated for 230 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
RL875S-102K-RC lists a DC resistance of 2.72Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
RL875S-102K-RC uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from RL875S-102K-RC to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 1 mH |
| Tolerance | ±10% |
| Current Rating | 230 mA |
| DC Resistance (DCR) | 2.72Ohm Max |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.307" Dia (7.80mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1MH 230MA 2.72 OHM TH |
| Series | RL875S |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 95 @ 252kHz |
| Self Resonant Frequency | 2MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.295" (7.50mm) |
