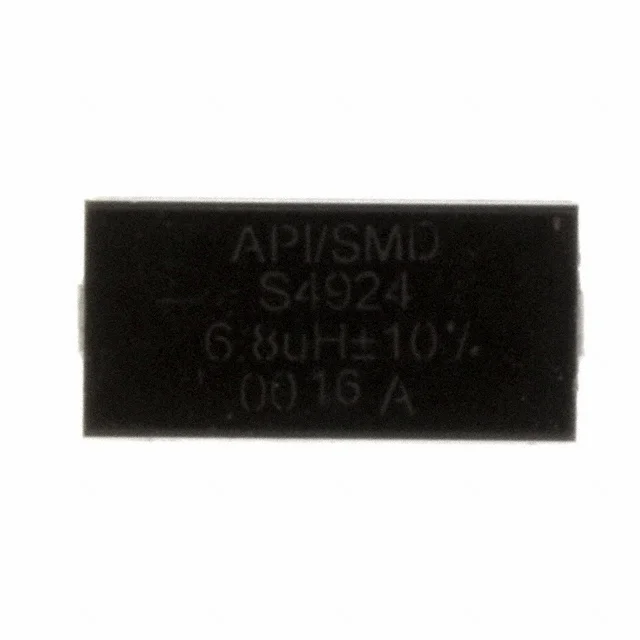

FIXED IND 6.8UH 610MA 1.02 OHM
| Inductance | 6.8 µH |
| Tolerance | ±10% |
| Current Rating | 610 mA |
| DC Resistance (DCR) | 1.02Ohm Max |
| saturationCurrent | 610mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.505" L x 0.240" W (12.82mm x 6.09mm) |
| Case / Size | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 6.8UH 610MA 1.02 OHM |
| Series | S4924 |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Iron |
| shielding | Shielded |
| qFactor | 50 @ 7.9MHz |
| selfResonantFreq | 55MHz |
| ratings | - |
| testFrequency | 7.9 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.220" (5.58mm) |
| features | https://www.digikey.com/en/products/detail/delevan/S4924-682K/303215 |
