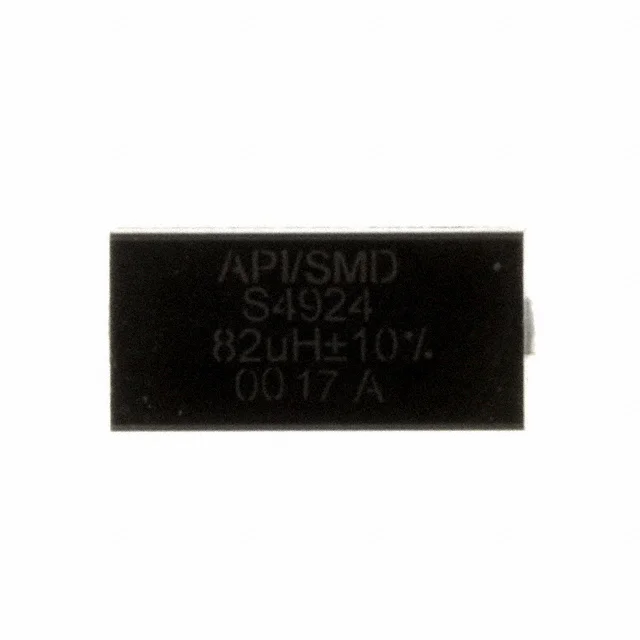

Description
FIXED IND 82UH 342MA 2.44 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for S4924-823K.
S4924-823K has an inductance value of 82 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
S4924-823K is rated for 342 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
S4924-823K lists a DC resistance of 2.44Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
S4924-823K uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from S4924-823K to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 82 µH |
| Tolerance | ±10% |
| Current Rating | 342 mA |
| DC Resistance (DCR) | 2.44Ohm Max |
| Saturation Current | 120mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.505" L x 0.240" W (12.82mm x 6.09mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 82UH 342MA 2.44 OHM |
| Series | S4924 |
| Product Status | Active |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 50 @ 2.5MHz |
| Self Resonant Frequency | 10.5MHz |
| Inductance Test Frequency | 2.5 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.220" (5.58mm) |
