Description

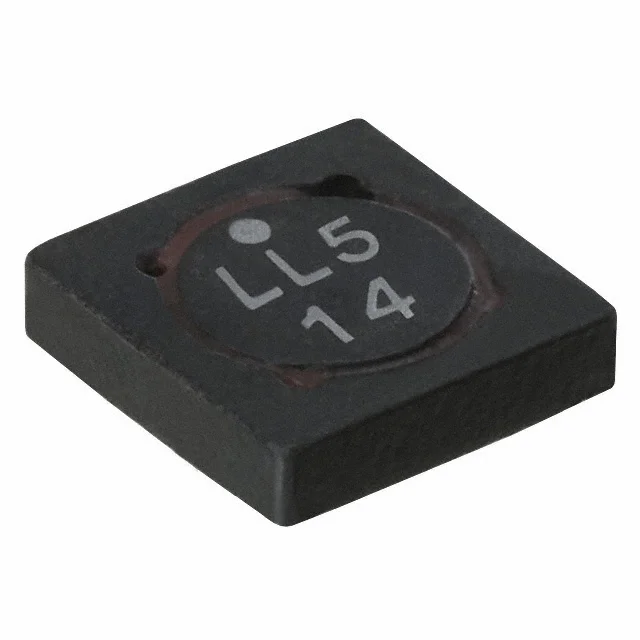

FIXED IND 1MH 126MA 15.8 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SD14-102-R.
SD14-102-R has an inductance value of 1 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SD14-102-R is rated for 126 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SD14-102-R lists a DC resistance of 15.8Ohm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SD14-102-R uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SD14-102-R to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 1 mH |
| Tolerance | ±20% |
| Current Rating | 126 mA |
| DC Resistance (DCR) | 15.8Ohm |
| Saturation Current | 117mA |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 1MH 126MA 15.8 OHM SMD |
| Series | SD |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.057" (1.45mm) |
