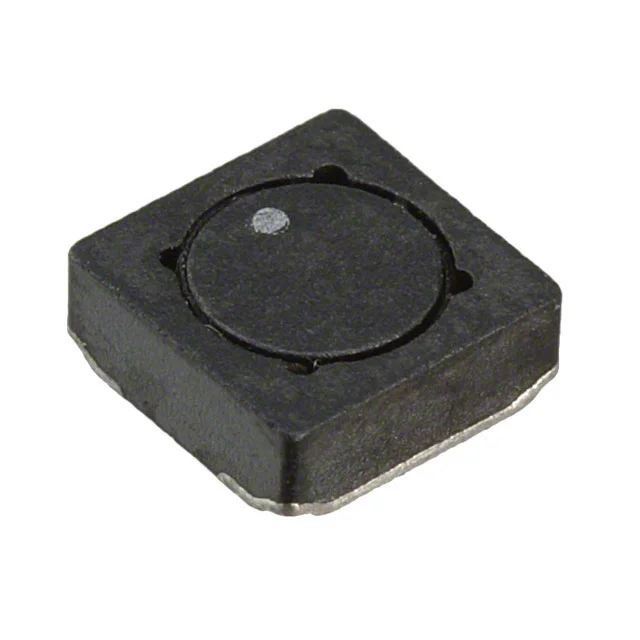

Description
FIXED IND 2.2UH 2.45A 42.9 MOHM
Specifications
Inductance
2.2 µH
Current Rating
2.45 A
DC Resistance (DCR)
42.9mOhm
Dimensions
0.205" L x 0.205" W (5.20mm x 5.20mm)
Product Attributes
Manufacturer Verified
Last verified: 6/15/2026| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 2.45 A |
| DC Resistance (DCR) | 42.9mOhm |
| saturationCurrent | 1.87A |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 2.2UH 2.45A 42.9 MOHM |
| Series | SD |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.079" (2.00mm) |
| features | - |
