Description

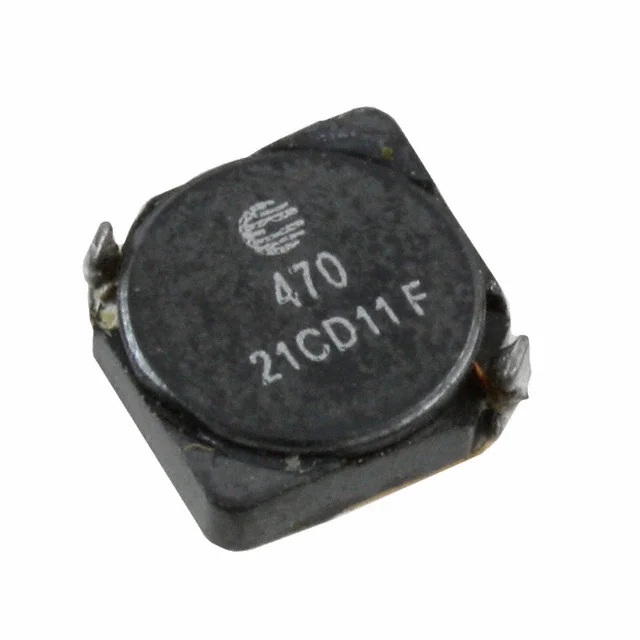

FIXED IND 47UH 610MA 595 MOHM
Specifications
Inductance
47 µH
Current Rating
610 mA
DC Resistance (DCR)
595mOhm Max
Dimensions
0.236" L x 0.236" W (6.00mm x 6.00mm)
Product Attributes
Manufacturer Verified
Last verified: 6/15/2026| Inductance | 47 µH |
| Tolerance | ±30% |
| Current Rating | 610 mA |
| DC Resistance (DCR) | 595mOhm Max |
| saturationCurrent | 540mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 47UH 610MA 595 MOHM |
| Series | SD6020 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.079" (2.00mm) |
| features | - |
