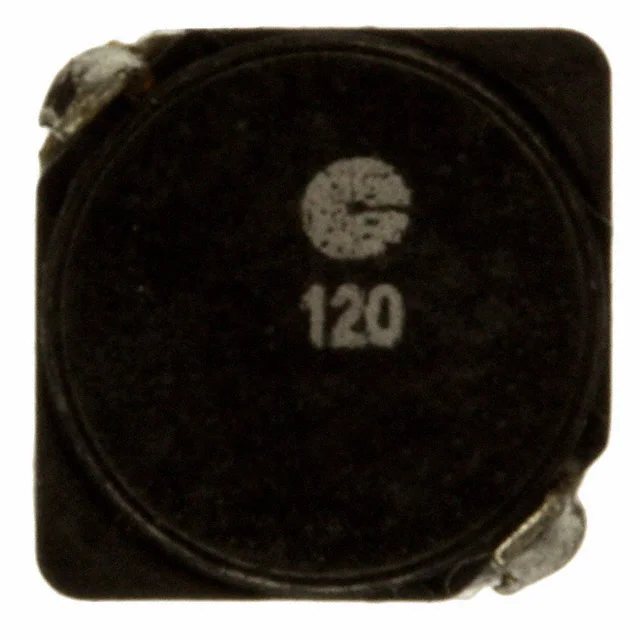

FIXED IND 11.3UH 1.99A 76 MOHM
| Inductance | 11.3 µH |
| Tolerance | ±30% |
| Current Rating | 1.99 A |
| DC Resistance (DCR) | 76mOhm Max |
| saturationCurrent | 1.2A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Case / Size | Nonstandard |
| Supplier | WEC,Eaton - Electronics Division |
| Description | FIXED IND 11.3UH 1.99A 76 MOHM |
| Series | SD6030 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.118" (3.00mm) |
| features | - |
