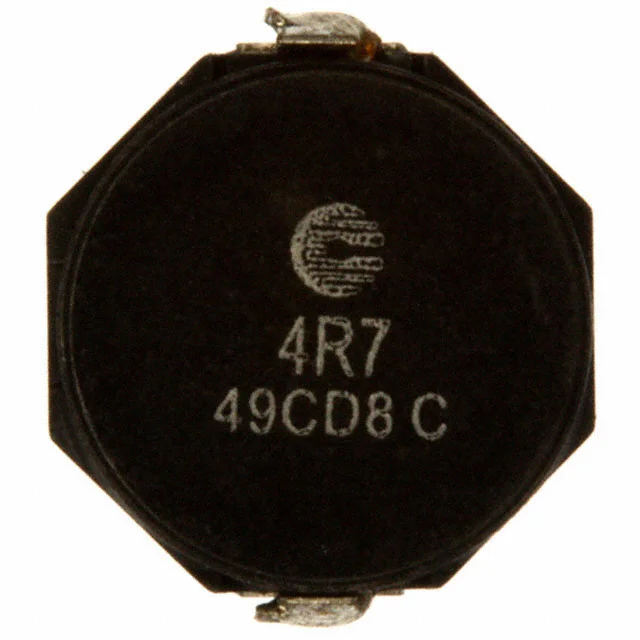

Description
FIXED IND 4.7UH 4.5A 24.7 MOHM
Specifications
Inductance
4.7 µH
Current Rating
4.5 A
DC Resistance (DCR)
24.7mOhm Max
Dimensions
0.374" L x 0.327" W (9.50mm x 8.30mm)
Product Attributes
Manufacturer Verified
Last verified: 6/15/2026| Inductance | 4.7 µH |
| Tolerance | ±30% |
| Current Rating | 4.5 A |
| DC Resistance (DCR) | 24.7mOhm Max |
| saturationCurrent | 3.6A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.374" L x 0.327" W (9.50mm x 8.30mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 4.7UH 4.5A 24.7 MOHM |
| Series | SD8328 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.118" (3.00mm) |
| features | - |
