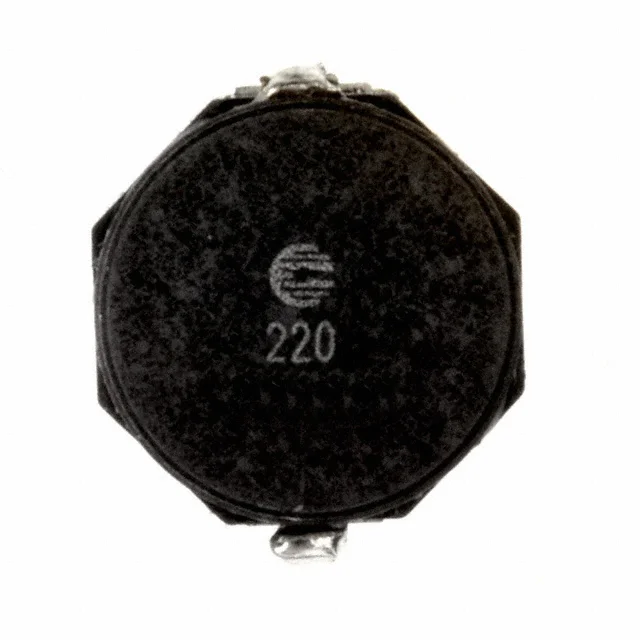

FIXED IND 22UH 1.8A 75 MOHM SMD
| Inductance | 22 µH |
| Tolerance | ±30% |
| Current Rating | 1.8 A |
| DC Resistance (DCR) | 75mOhm Max |
| saturationCurrent | 2.6A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.374" L x 0.327" W (9.50mm x 8.30mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 22UH 1.8A 75 MOHM SMD |
| Series | SD8350 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.177" (4.50mm) |
| features | - |
