Description

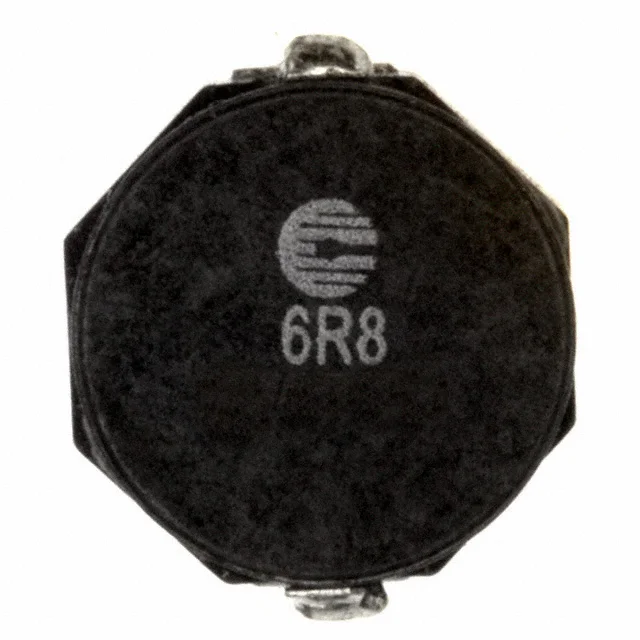

FIXED IND 6.8UH 3.9A 25 MOHM SMD
Specifications
Inductance
6.8 µH
Current Rating
3.9 A
DC Resistance (DCR)
25mOhm Max
Dimensions
0.374" L x 0.327" W (9.50mm x 8.30mm)
Product Attributes
Manufacturer Verified
Last verified: 6/15/2026| Inductance | 6.8 µH |
| Tolerance | ±30% |
| Current Rating | 3.9 A |
| DC Resistance (DCR) | 25mOhm Max |
| saturationCurrent | 4.4A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.374" L x 0.327" W (9.50mm x 8.30mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 6.8UH 3.9A 25 MOHM SMD |
| Series | SD8350 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.177" (4.50mm) |
| features | - |
