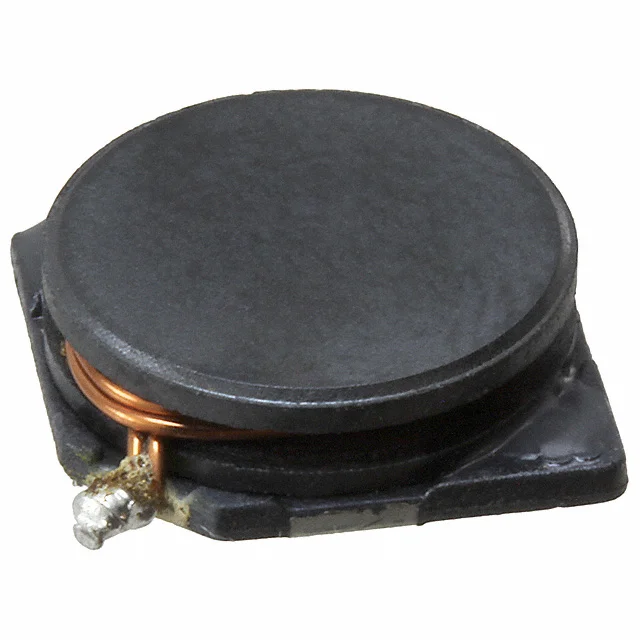

FIXED IND 2.7UH 3A 28 MOHM SMD
| Inductance | 2.7 µH |
| Tolerance | ±20% |
| Current Rating | 3 A |
| DC Resistance (DCR) | 28mOhm Max |
| saturationCurrent | 4.2A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 2.7UH 3A 28 MOHM SMD |
| Series | SDR1030 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 13 @ 7.96MHz |
| selfResonantFreq | 73.6MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.130" (3.30mm) |
| features | - |
