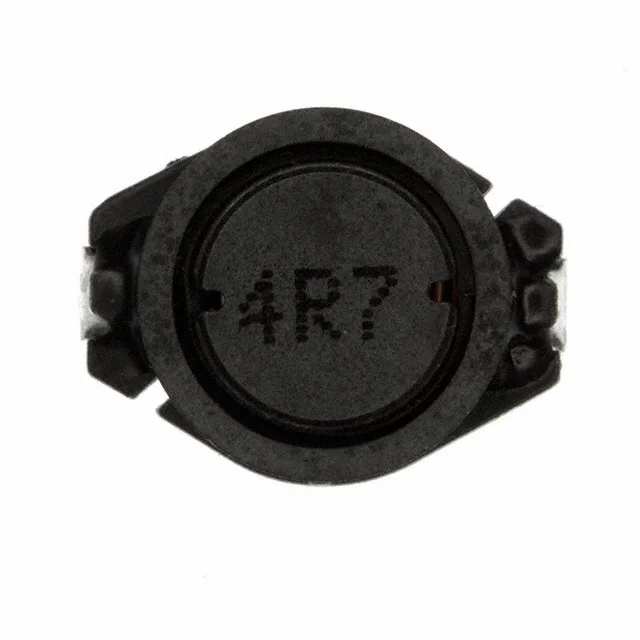

Description
FIXED IND 4.7UH 2.5A 78 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SDS130R-472N.
SDS130R-472N has an inductance value of 4.7 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SDS130R-472N is rated for 2.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SDS130R-472N lists a DC resistance of 78mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SDS130R-472N uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SDS130R-472N to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 4.7 µH |
| Tolerance | ±30% |
| Current Rating | 2.5 A |
| DC Resistance (DCR) | 78mOhm Max |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.500" L x 0.398" W (12.70mm x 10.10mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 4.7UH 2.5A 78 MOHM SMD |
| Series | SDS130R |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 100 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.118" (3.00mm) |
