Description

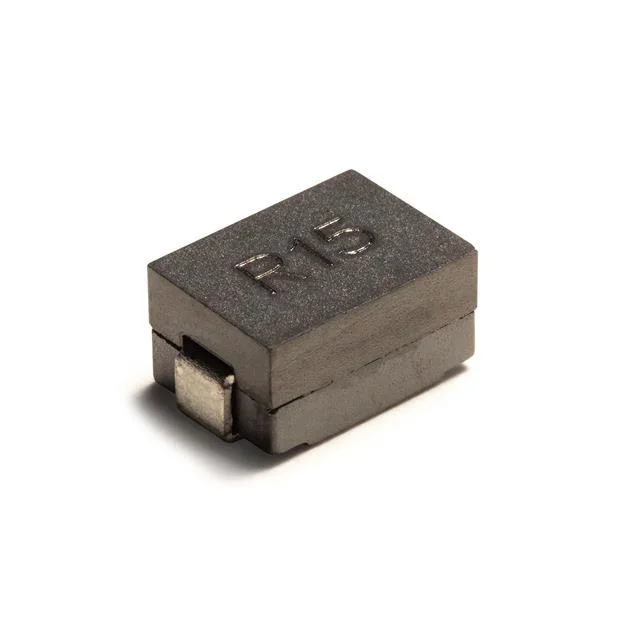

FIXED IND 115NH 61A 0.35 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SPB1007-R12M.
SPB1007-R12M has an inductance value of 115 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SPB1007-R12M is rated for 61 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SPB1007-R12M lists a DC resistance of 0.35mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SPB1007-R12M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SPB1007-R12M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 115 nH |
| Tolerance | ±20% |
| Current Rating | 61 A |
| DC Resistance (DCR) | 0.35mOhm Max |
| Saturation Current | 94A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.413" L x 0.315" W (10.50mm x 8.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 115NH 61A 0.35 MOHM |
| Series | SPB1007 |
| Product Status | Active |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.295" (7.50mm) |
