Description

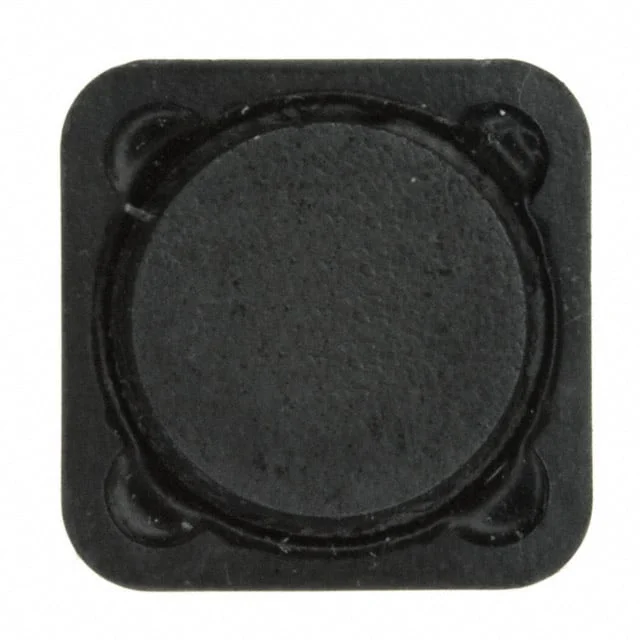

FIXED IND 680UH 500MA 1.3 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SPD125-684M.
SPD125-684M has an inductance value of 680 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SPD125-684M is rated for 500 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SPD125-684M lists a DC resistance of 1.3Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SPD125-684M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SPD125-684M to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 680 µH |
| Tolerance | ±20% |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 1.3Ohm Max |
| Saturation Current | 500mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 680UH 500MA 1.3 OHM |
| Series | SPD125 |
| Product Status | Obsolete |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.236" (6.00mm) |
