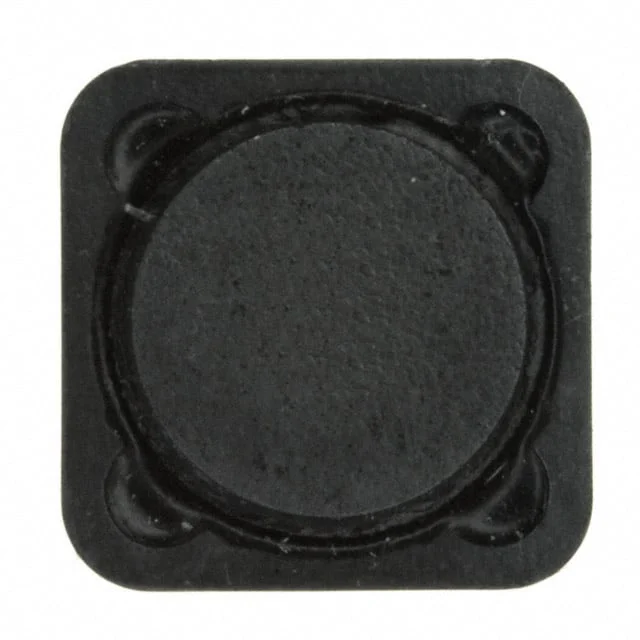

FIXED IND 82UH 1.4A 190 MOHM SMD
| Inductance | 82 µH |
| Tolerance | ±20% |
| Current Rating | 1.4 A |
| DC Resistance (DCR) | 190mOhm Max |
| saturationCurrent | 1.4A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Case / Size | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 82UH 1.4A 190 MOHM SMD |
| Series | SPD125 |
| productStatus | Obsolete |
| typeConstruction | - |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.236" (6.00mm) |
