Description

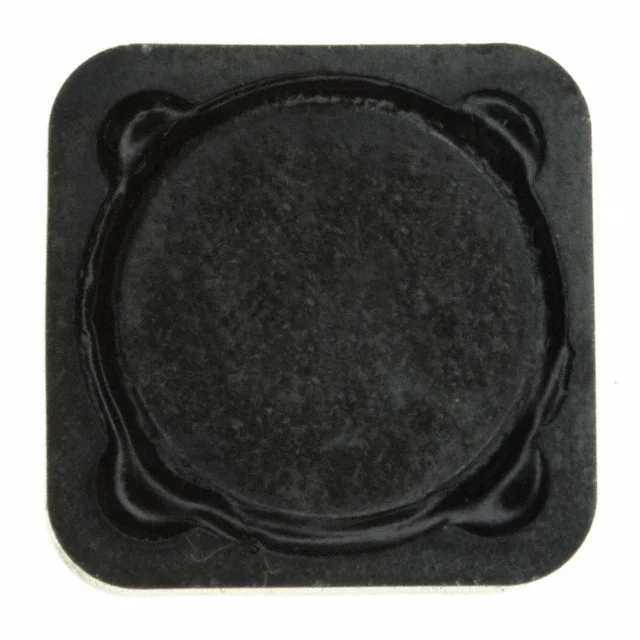

FIXED IND 100UH 1.3A 210 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SPD127-104M.
SPD127-104M has an inductance value of 100 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SPD127-104M is rated for 1.3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SPD127-104M lists a DC resistance of 210mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SPD127-104M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SPD127-104M to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating | 1.3 A |
| DC Resistance (DCR) | 210mOhm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 100UH 1.3A 210 MOHM |
| Series | SPD127 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.315" (8.00mm) |
