Description

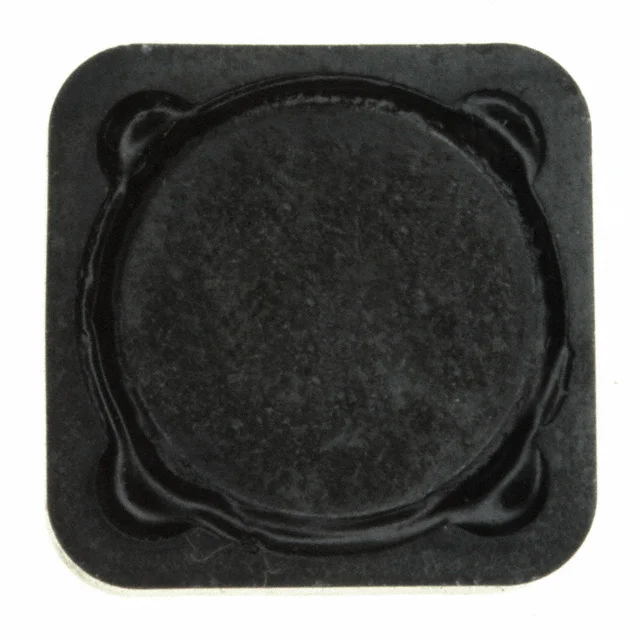

FIXED IND 180UH 1.3A 360 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SPD127-184M.
SPD127-184M has an inductance value of 180 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SPD127-184M is rated for 1.3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SPD127-184M lists a DC resistance of 360mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SPD127-184M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SPD127-184M to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 180 µH |
| Tolerance | ±20% |
| Current Rating | 1.3 A |
| DC Resistance (DCR) | 360mOhm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 180UH 1.3A 360 MOHM |
| Series | SPD127 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.315" (8.00mm) |
