Description

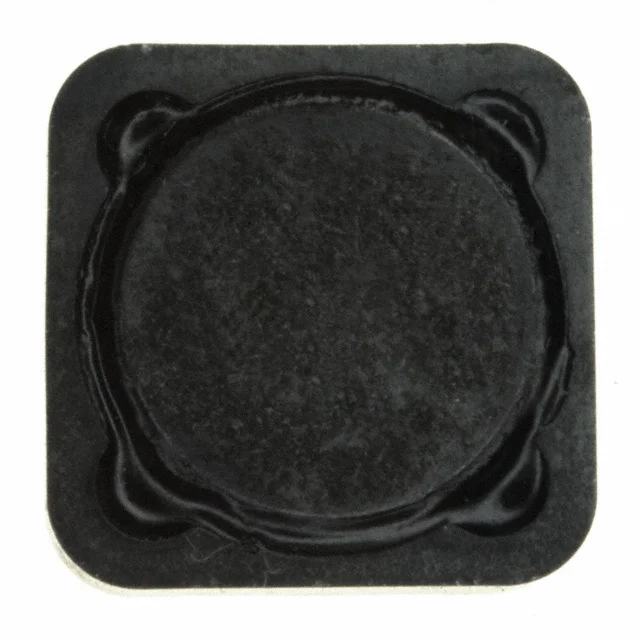

FIXED IND 330UH 1A 620 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SPD127-334M.
SPD127-334M has an inductance value of 330 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SPD127-334M is rated for 1 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SPD127-334M lists a DC resistance of 620mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SPD127-334M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SPD127-334M to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating | 1 A |
| DC Resistance (DCR) | 620mOhm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 330UH 1A 620 MOHM SMD |
| Series | SPD127 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.315" (8.00mm) |
