Description

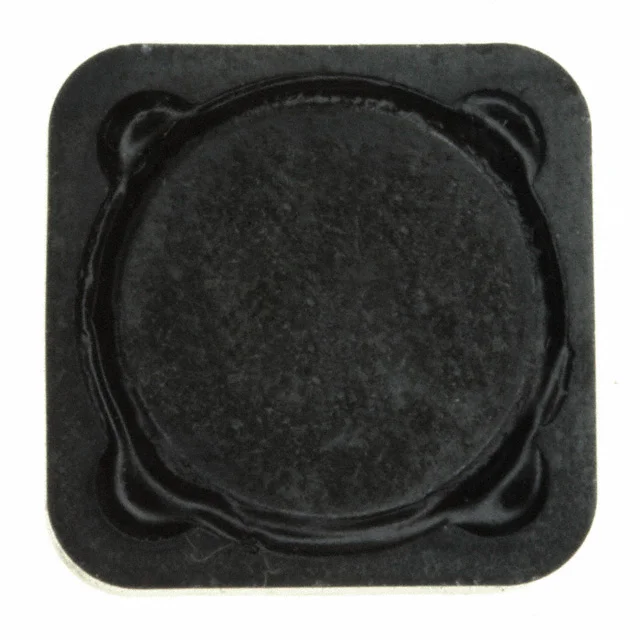

FIXED IND 6.8UH 6.2A 30 MOHM SMD
Specifications
Inductance
6.8 µH
Current Rating
6.2 A
DC Resistance (DCR)
30mOhm Max
Dimensions
0.472" L x 0.472" W (12.00mm x 12.00mm)
Product Attributes
Manufacturer Verified
Last verified: 6/15/2026| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating | 6.2 A |
| DC Resistance (DCR) | 30mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Case / Size | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 6.8UH 6.2A 30 MOHM SMD |
| Series | SPD127 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.315" (8.00mm) |
