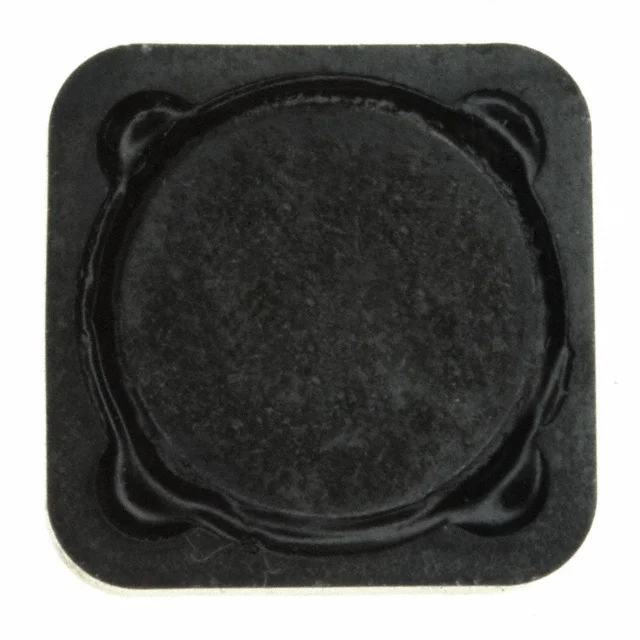

FIXED IND 680UH 700MA 1.22 OHM
| Inductance | 680 µH |
| Tolerance | ±20% |
| Current Rating | 700 mA |
| DC Resistance (DCR) | 1.22Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Case / Size | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 680UH 700MA 1.22 OHM |
| Series | SPD127 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.315" (8.00mm) |
