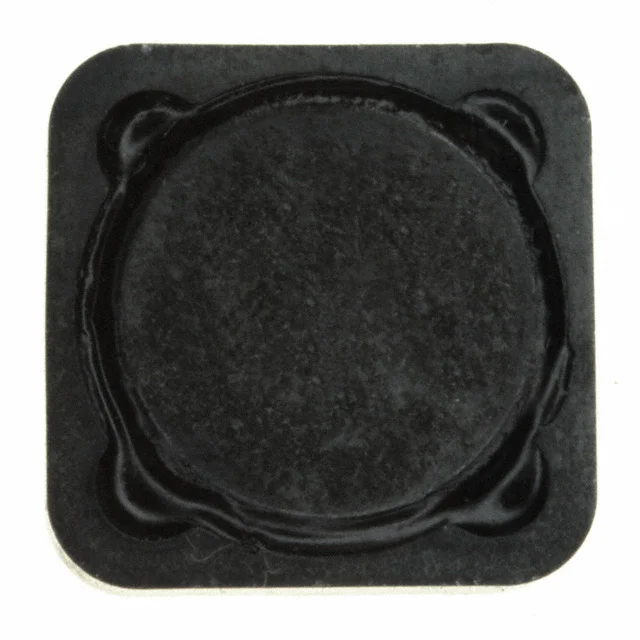

FIXED IND 15UH 4.5A 48 MOHM SMD
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating | 4.5 A |
| DC Resistance (DCR) | 48mOhm Max |
| saturationCurrent | 4.5A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Case / Size | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 15UH 4.5A 48 MOHM SMD |
| Series | SPD127R |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.315" (8.00mm) |
