Description

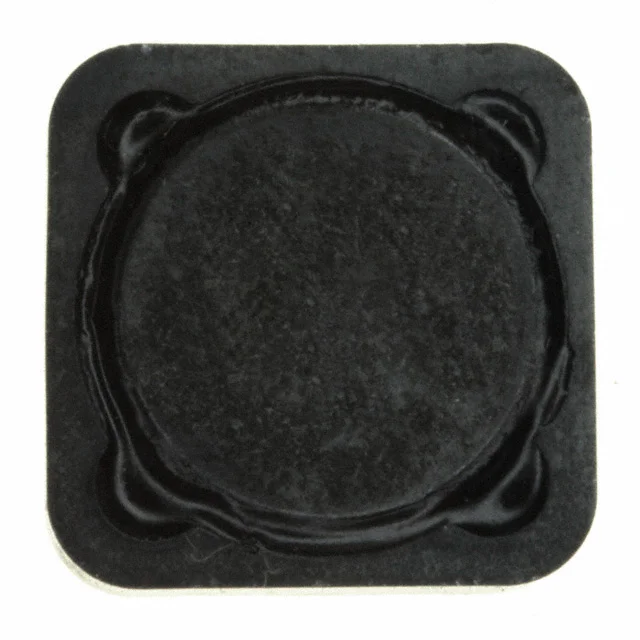

FIXED IND 820UH 650MA 1.4 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SPD127R-824M.
SPD127R-824M has an inductance value of 820 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SPD127R-824M is rated for 650 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SPD127R-824M lists a DC resistance of 1.4Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SPD127R-824M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SPD127R-824M to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 820 µH |
| Tolerance | ±20% |
| Current Rating | 650 mA |
| DC Resistance (DCR) | 1.4Ohm Max |
| Saturation Current | 650mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 820UH 650MA 1.4 OHM |
| Series | SPD127R |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.315" (8.00mm) |
