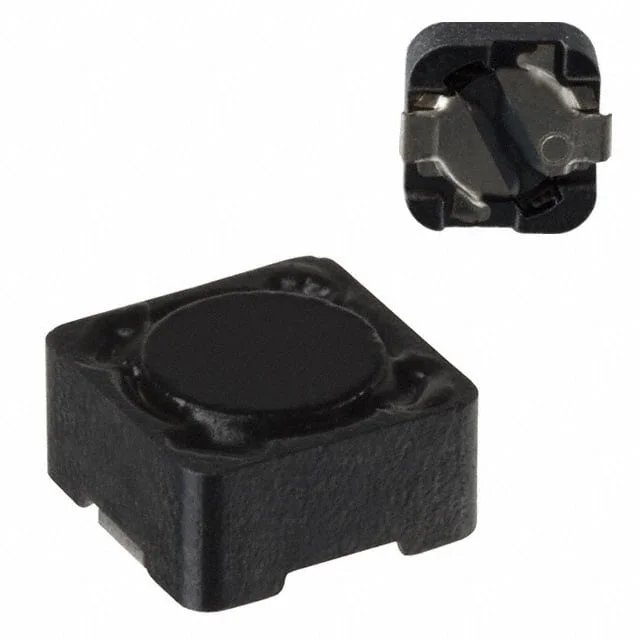

Description
FIXED IND 2.4UH 2.69A 32 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SPD73-242M.
SPD73-242M has an inductance value of 2.4 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SPD73-242M is rated for 2.69 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SPD73-242M lists a DC resistance of 32mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SPD73-242M uses a package or case of Surface Mount. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SPD73-242M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2.4 µH |
| Tolerance | ±20% |
| Current Rating | 2.69 A |
| DC Resistance (DCR) | 32mOhm Max |
| Saturation Current | 2.69A |
| Operating Temperature | -55°C ~ 125°C |
| Case / Size | Surface Mount |
| Package / Case | Surface Mount |
| Supplier | Delevan |
| Description | FIXED IND 2.4UH 2.69A 32 MOHM |
| Series | SPD73 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Supplier Device Package | Nonstandard |
| Height - Seated (Max) | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Features | 0.154" (3.90mm) |
