Description

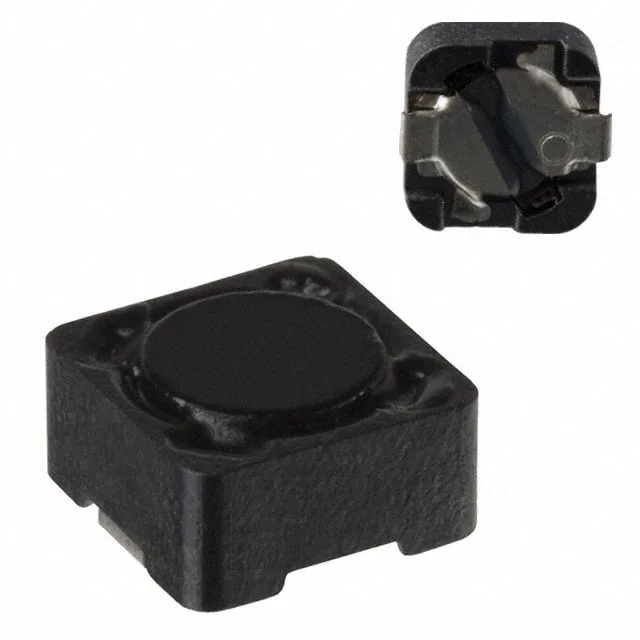

FIXED IND 560UH 222MA 4.67 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SPD73-564M.
SPD73-564M has an inductance value of 560 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SPD73-564M is rated for 222 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SPD73-564M lists a DC resistance of 4.67Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SPD73-564M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SPD73-564M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 560 µH |
| Tolerance | ±20% |
| Current Rating | 222 mA |
| DC Resistance (DCR) | 4.67Ohm Max |
| Saturation Current | 222mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 560UH 222MA 4.67 OHM |
| Series | SPD73 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.154" (3.90mm) |
