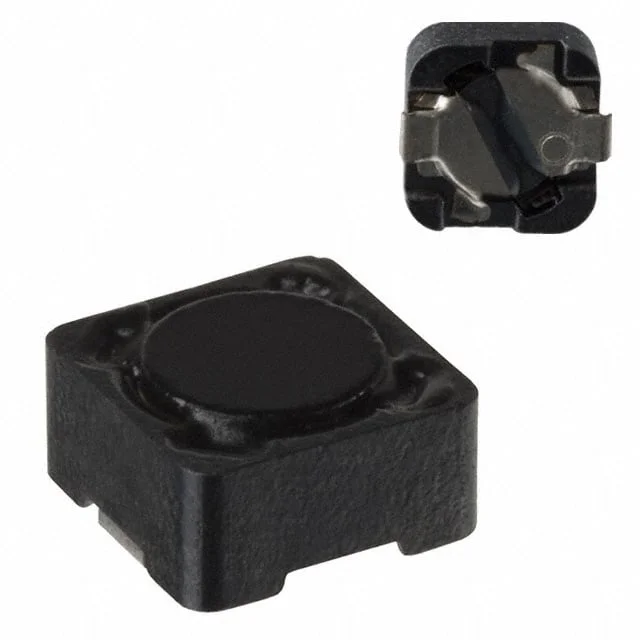

FIXED IND 220UH 570MA 1.65 OHM
| Inductance | 220 µH |
| Tolerance | ±20% |
| Current Rating | 570 mA |
| DC Resistance (DCR) | 1.65Ohm Max |
| saturationCurrent | 570mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Case / Size | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 220UH 570MA 1.65 OHM |
| Series | SPD73R |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.154" (3.90mm) |
| features | - |
