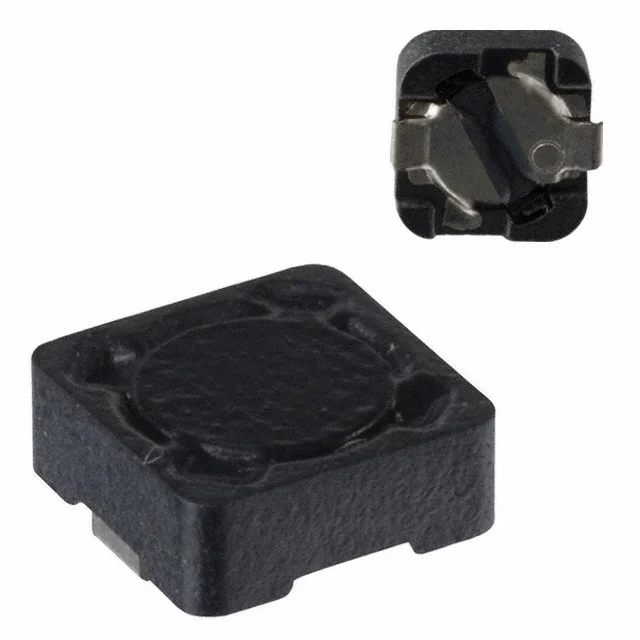

FIXED IND 82UH 1A 430 MOHM SMD
| Inductance | 82 µH |
| Tolerance | ±20% |
| Current Rating | 1 A |
| DC Resistance (DCR) | 430mOhm Max |
| saturationCurrent | 1A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Case / Size | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 82UH 1A 430 MOHM SMD |
| Series | SPD74 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.185" (4.70mm) |
| features | https://www.digikey.com/en/products/detail/delevan/SPD74-823M/505247 |
