Description

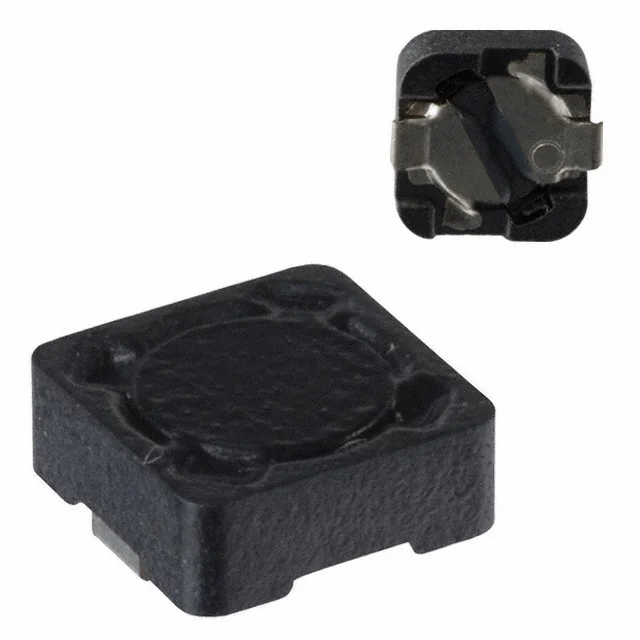

FIXED IND 820UH 300MA 5.2 OHM
Specifications
Inductance
820 µH
Current Rating
300 mA
DC Resistance (DCR)
5.2Ohm Max
Dimensions
0.287" L x 0.287" W (7.30mm x 7.30mm)
Product Attributes
Manufacturer Verified
Last verified: 6/15/2026| Inductance | 820 µH |
| Tolerance | ±20% |
| Current Rating | 300 mA |
| DC Resistance (DCR) | 5.2Ohm Max |
| saturationCurrent | 300mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Case / Size | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 820UH 300MA 5.2 OHM |
| Series | SPD74 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.185" (4.70mm) |
