Description

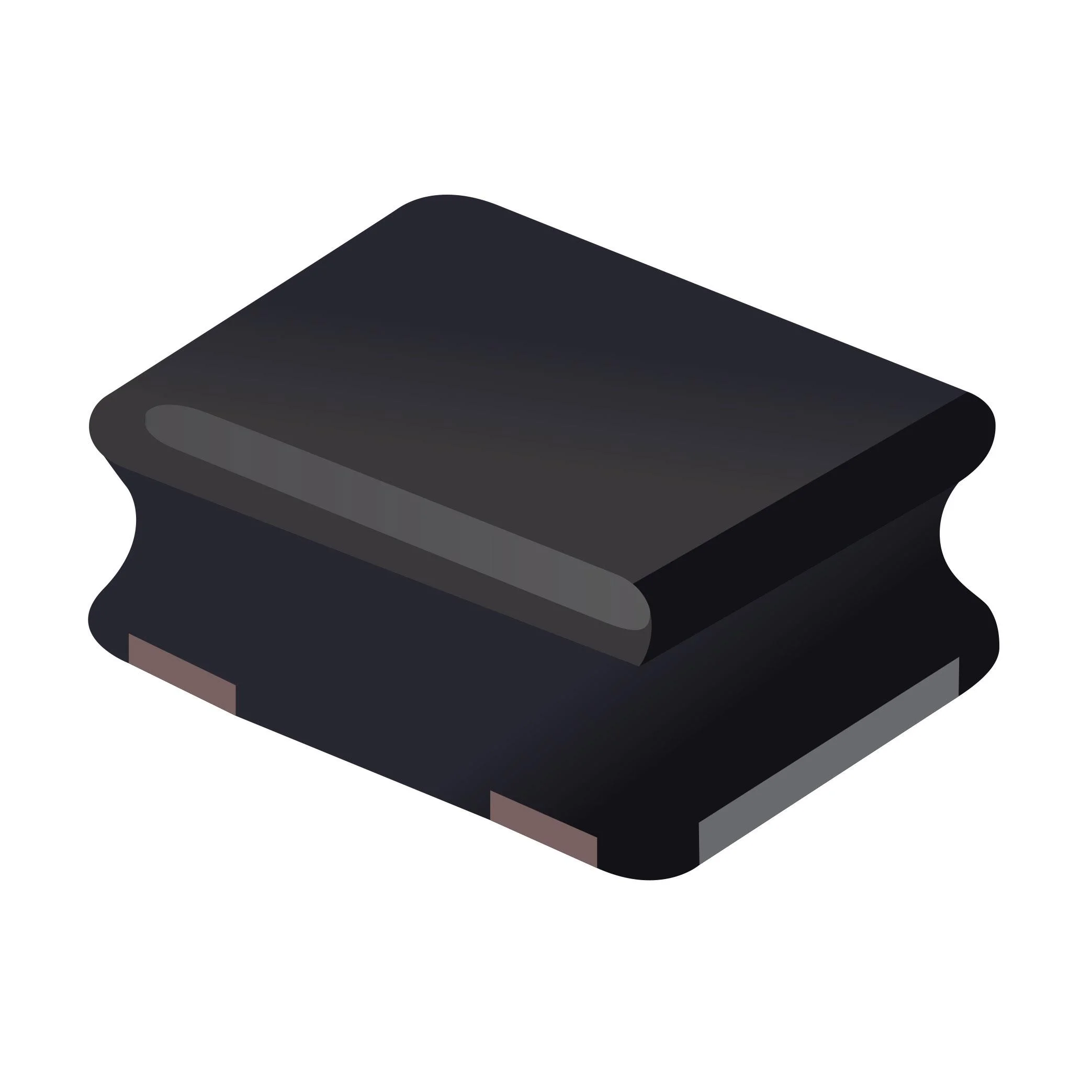

FIXED IND 22UH 500MA 2.16 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRN2010BTA-220M.
SRN2010BTA-220M has an inductance value of 22 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRN2010BTA-220M is rated for 500 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRN2010BTA-220M lists a DC resistance of 2.16Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRN2010BTA-220M uses a package or case of 0806 (2016 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRN2010BTA-220M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 2.16Ohm Max |
| Saturation Current | 380mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Case / Size | 0806 (2016 Metric) |
| Package / Case | 0806 (2016 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 22UH 500MA 2.16 OHM |
| Series | SRN2010BTA |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Ferrite |
| Shielding | Semi-Shielded |
| Q @ Frequency | 10 @ 1MHz |
| Self Resonant Frequency | 22MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0806 |
| Height - Seated (Max) | 0.039" (1.00mm) |
