Inductor Datasheets

Browse and download PDF datasheets for inductors from leading manufacturers.

Product Attributes

All Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8063)TDK (7746)Abracon (6926)Coilcraft (5980)

SRN2010BTA-220M

Bourns Inc.

22 µH• 500 mA0806 (2016 Metric)

SRN2010BTA-R68M

Bourns Inc.

680 nH• 3.6 A0806 (2016 Metric)

SRN2010BTA-4R7M

Bourns Inc.

4.7 µH• 1.3 A0806 (2016 Metric)

SRN2010BTA-6R8M

Bourns Inc.

6.8 µH• 900 mA0806 (2016 Metric)

SRN2010BTA-3R3M

Bourns Inc.

3.3 µH• 1.7 A0806 (2016 Metric)

SRN2010BTA-8R2M

Bourns Inc.

8.2 µH• 800 mA0806 (2016 Metric)

SRN2010BTA-150M

Bourns Inc.

15 µH• 600 mA0806 (2016 Metric)

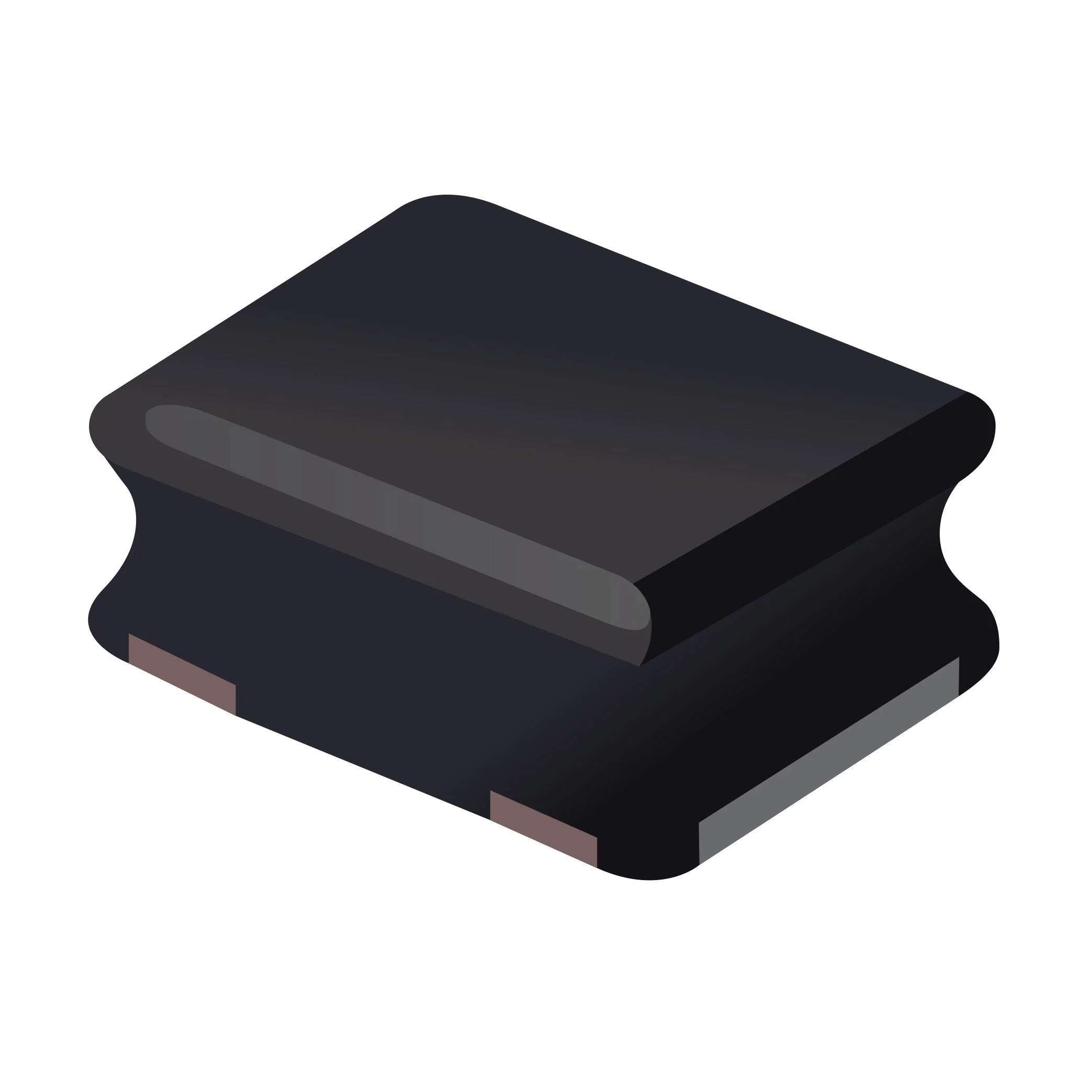

SRN2010BTA-180M

Bourns Inc.

18 µH• 550 mA0806 (2016 Metric)

SRN2010BTA-R24M

Bourns Inc.

240 nH• 5.2 A0806 (2016 Metric)

SRN2010BTA-R47M

Bourns Inc.

470 nH• 4 A0806 (2016 Metric)

SRN2010BTA-R33M

Bourns Inc.

330 nH• 4.6 A0806 (2016 Metric)

SRN2010BTA-1R5M

Bourns Inc.

1.5 µH• 2.5 A0806 (2016 Metric)

SRN2010BTA-2R2M

Bourns Inc.

2.2 µH• 2.1 A0806 (2016 Metric)

SRN2010BTA-1R0M

Bourns Inc.

1 µH• 3.1 A0806 (2016 Metric)

SRN2010BTA-100M

Bourns Inc.

10 µH• 720 mA0806 (2016 Metric)

SRN2010BTA-5R6M

Bourns Inc.

5.6 µH• 1.1 A0806 (2016 Metric)

Product	Inductance	Current	DCR	Size	Package	Actions
SRN2010BTA-220M Bourns Inc.	22 µH	500 mA	2.16Ohm Max	0.079" L x 0.063" W (2.00mm x 1.60mm)	0806 (2016 Metric)	View PDF
SRN2010BTA-R68M Bourns Inc.	680 nH	3.6 A	60mOhm Max	0.079" L x 0.063" W (2.00mm x 1.60mm)	0806 (2016 Metric)	View PDF
SRN2010BTA-4R7M Bourns Inc.	4.7 µH	1.3 A	474mOhm Max	0.079" L x 0.063" W (2.00mm x 1.60mm)	0806 (2016 Metric)	View PDF
SRN2010BTA-6R8M Bourns Inc.	6.8 µH	900 mA	576mOhm Max	0.079" L x 0.063" W (2.00mm x 1.60mm)	0806 (2016 Metric)	View PDF
SRN2010BTA-3R3M Bourns Inc.	3.3 µH	1.7 A	252mOhm Max	0.079" L x 0.063" W (2.00mm x 1.60mm)	0806 (2016 Metric)	View PDF
SRN2010BTA-8R2M Bourns Inc.	8.2 µH	800 mA	756mOhm Max	0.079" L x 0.063" W (2.00mm x 1.60mm)	0806 (2016 Metric)	View PDF
SRN2010BTA-150M Bourns Inc.	15 µH	600 mA	1.44Ohm Max	0.079" L x 0.063" W (2.00mm x 1.60mm)	0806 (2016 Metric)	View PDF
SRN2010BTA-180M Bourns Inc.	18 µH	550 mA	1.98Ohm Max	0.079" L x 0.063" W (2.00mm x 1.60mm)	0806 (2016 Metric)	View PDF
SRN2010BTA-R24M Bourns Inc.	240 nH	5.2 A	24mOhm Max	0.079" L x 0.063" W (2.00mm x 1.60mm)	0806 (2016 Metric)	View PDF
SRN2010BTA-R47M Bourns Inc.	470 nH	4 A	45mOhm Max	0.079" L x 0.063" W (2.00mm x 1.60mm)	0806 (2016 Metric)	View PDF
SRN2010BTA-R33M Bourns Inc.	330 nH	4.6 A	34.8mOhm Max	0.079" L x 0.063" W (2.00mm x 1.60mm)	0806 (2016 Metric)	View PDF
SRN2010BTA-1R5M Bourns Inc.	1.5 µH	2.5 A	118mOhm Max	0.079" L x 0.063" W (2.00mm x 1.60mm)	0806 (2016 Metric)	View PDF
SRN2010BTA-2R2M Bourns Inc.	2.2 µH	2.1 A	168mOhm Max	0.079" L x 0.063" W (2.00mm x 1.60mm)	0806 (2016 Metric)	View PDF
SRN2010BTA-1R0M Bourns Inc.	1 µH	3.1 A	80.4mOhm Max	0.079" L x 0.063" W (2.00mm x 1.60mm)	0806 (2016 Metric)	View PDF
SRN2010BTA-100M Bourns Inc.	10 µH	720 mA	840mOhm Max	0.079" L x 0.063" W (2.00mm x 1.60mm)	0806 (2016 Metric)	View PDF
SRN2010BTA-5R6M Bourns Inc.	5.6 µH	1.1 A	498mOhm Max	0.079" L x 0.063" W (2.00mm x 1.60mm)	0806 (2016 Metric)	View PDF
