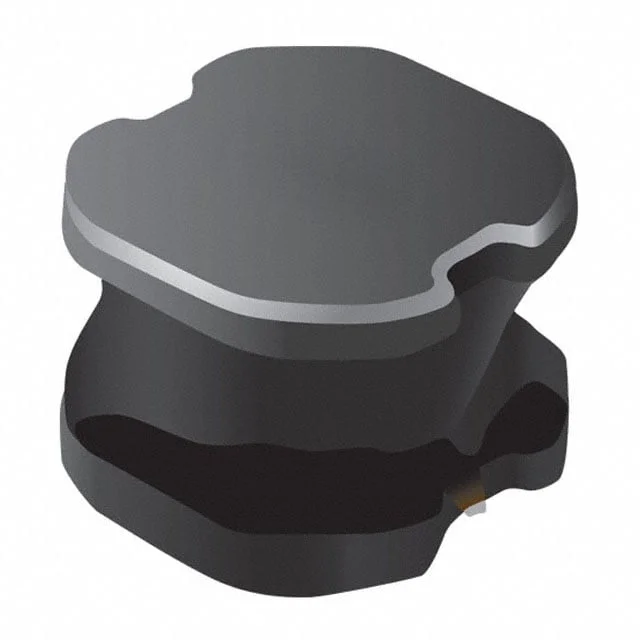

FIXED IND 1.3UH 4A 17 MOHM SMD
| Inductance | 1.3 µH |
| Tolerance | ±30% |
| Current Rating | 4 A |
| DC Resistance (DCR) | 17mOhm Max |
| saturationCurrent | 8A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1.3UH 4A 17 MOHM SMD |
| Series | SRN6045 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 15 @ 7.96MHz |
| selfResonantFreq | 48MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.177" (4.50mm) |
| features | - |
