SRN6045T-4R7M
Bourns Inc.
- Inductance
- 4.7 µH
- Current
- 3 A
- DCR
- 37.6mOhm Max
- Size
- 0.236" L x 0.236" W (6.00mm x 6.00mm)
Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: SRN6045
Browse series tables and compare the available specifications.
SRN6045
SRN6045-3R3Y
Bourns Inc.
- Inductance
- 3.3 µH
- Current
- 3.2 A
- DCR
- 30.2mOhm Max
- Size
- 0.236" L x 0.236" W (6.00mm x 6.00mm)
SRN6045-220M
Bourns Inc.
- Inductance
- 22 µH
- Current
- 1.5 A
- DCR
- 142mOhm Max
- Size
- 0.236" L x 0.236" W (6.00mm x 6.00mm)
SRN6045-1R0Y
Bourns Inc.
- Inductance
- 1 µH
- Current
- 4.2 A
- DCR
- 13.9mOhm Max
- Size
- 0.236" L x 0.236" W (6.00mm x 6.00mm)
SRN6045-4R7Y
Bourns Inc.
- Inductance
- 4.7 µH
- Current
- 3 A
- DCR
- 37.6mOhm Max
- Size
- 0.236" L x 0.236" W (6.00mm x 6.00mm)
SRN6045-101M
Bourns Inc.
- Inductance
- 100 µH
- Current
- 700 mA
- DCR
- 494mOhm Max
- Size
- 0.236" L x 0.236" W (6.00mm x 6.00mm)
SRN6045-100M
Bourns Inc.
- Inductance
- 10 µH
- Current
- 2.5 A
- DCR
- 58.6mOhm Max
- Size
- 0.236" L x 0.236" W (6.00mm x 6.00mm)
SRN6045-470M
Bourns Inc.
- Inductance
- 47 µH
- Current
- 1.1 A
- DCR
- 257mOhm Max
- Size
- 0.236" L x 0.236" W (6.00mm x 6.00mm)
SRN6045-6R8Y
Bourns Inc.
- Inductance
- 6.8 µH
- Current
- 2.8 A
- DCR
- 47.3mOhm Max
- Size
- 0.236" L x 0.236" W (6.00mm x 6.00mm)
SRN6045-680M
Bourns Inc.
- Inductance
- 68 µH
- Current
- 900 mA
- DCR
- 351mOhm Max
- Size
- 0.236" L x 0.236" W (6.00mm x 6.00mm)
SRN6045-8R2Y
Bourns Inc.
- Inductance
- 8.2 µH
- Current
- 2.7 A
- DCR
- 55mOhm Max
- Size
- 0.236" L x 0.236" W (6.00mm x 6.00mm)
SRN6045-330M
Bourns Inc.
- Inductance
- 33 µH
- Current
- 1.4 A
- DCR
- 188mOhm Max
- Size
- 0.236" L x 0.236" W (6.00mm x 6.00mm)

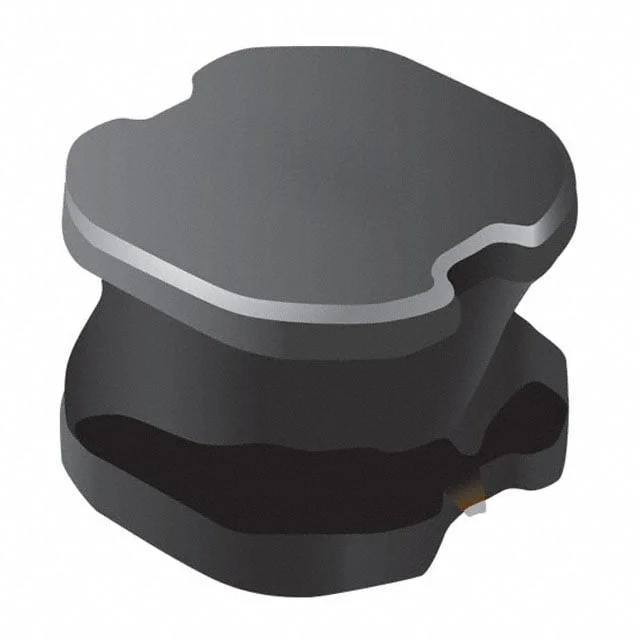

SRN6045-221M
Bourns Inc.
- Inductance
- 220 µH
- Current
- 600 mA
- DCR
- 1.18Ohm Max
- Size
- 0.236" L x 0.236" W (6.00mm x 6.00mm)
SRN6045-150M
Bourns Inc.
- Inductance
- 15 µH
- Current
- 1.9 A
- DCR
- 95.8mOhm Max
- Size
- 0.236" L x 0.236" W (6.00mm x 6.00mm)
SRN6045-1R8Y
Bourns Inc.
- Inductance
- 1.8 µH
- Current
- 3.7 A
- DCR
- 19.8mOhm Max
- Size
- 0.236" L x 0.236" W (6.00mm x 6.00mm)
SRN6045-1R3Y
Bourns Inc.
- Inductance
- 1.3 µH
- Current
- 4 A
- DCR
- 17mOhm Max
- Size
- 0.236" L x 0.236" W (6.00mm x 6.00mm)
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
SRN6045T-4R7M Bourns Inc. | 4.7 µH | 3 A | 37.6mOhm Max | 0.236" L x 0.236" W (6.00mm x 6.00mm) | Nonstandard | |
SRN6045-3R3Y Bourns Inc. | 3.3 µH | 3.2 A | 30.2mOhm Max | 0.236" L x 0.236" W (6.00mm x 6.00mm) | Nonstandard | |
SRN6045-220M Bourns Inc. | 22 µH | 1.5 A | 142mOhm Max | 0.236" L x 0.236" W (6.00mm x 6.00mm) | Nonstandard | |
SRN6045-1R0Y Bourns Inc. | 1 µH | 4.2 A | 13.9mOhm Max | 0.236" L x 0.236" W (6.00mm x 6.00mm) | Nonstandard | |
SRN6045-4R7Y Bourns Inc. | 4.7 µH | 3 A | 37.6mOhm Max | 0.236" L x 0.236" W (6.00mm x 6.00mm) | Nonstandard | |
SRN6045-101M Bourns Inc. | 100 µH | 700 mA | 494mOhm Max | 0.236" L x 0.236" W (6.00mm x 6.00mm) | Nonstandard | |
SRN6045-100M Bourns Inc. | 10 µH | 2.5 A | 58.6mOhm Max | 0.236" L x 0.236" W (6.00mm x 6.00mm) | Nonstandard | |
SRN6045-470M Bourns Inc. | 47 µH | 1.1 A | 257mOhm Max | 0.236" L x 0.236" W (6.00mm x 6.00mm) | Nonstandard | |
SRN6045-6R8Y Bourns Inc. | 6.8 µH | 2.8 A | 47.3mOhm Max | 0.236" L x 0.236" W (6.00mm x 6.00mm) | Nonstandard | |
SRN6045-680M Bourns Inc. | 68 µH | 900 mA | 351mOhm Max | 0.236" L x 0.236" W (6.00mm x 6.00mm) | Nonstandard | |
SRN6045-8R2Y Bourns Inc. | 8.2 µH | 2.7 A | 55mOhm Max | 0.236" L x 0.236" W (6.00mm x 6.00mm) | Nonstandard | |
SRN6045-330M Bourns Inc. | 33 µH | 1.4 A | 188mOhm Max | 0.236" L x 0.236" W (6.00mm x 6.00mm) | Nonstandard | |
SRN6045-221M Bourns Inc. | 220 µH | 600 mA | 1.18Ohm Max | 0.236" L x 0.236" W (6.00mm x 6.00mm) | Nonstandard | |
SRN6045-150M Bourns Inc. | 15 µH | 1.9 A | 95.8mOhm Max | 0.236" L x 0.236" W (6.00mm x 6.00mm) | Nonstandard | |
SRN6045-1R8Y Bourns Inc. | 1.8 µH | 3.7 A | 19.8mOhm Max | 0.236" L x 0.236" W (6.00mm x 6.00mm) | Nonstandard | |
SRN6045-1R3Y Bourns Inc. | 1.3 µH | 4 A | 17mOhm Max | 0.236" L x 0.236" W (6.00mm x 6.00mm) | Nonstandard |
