Description

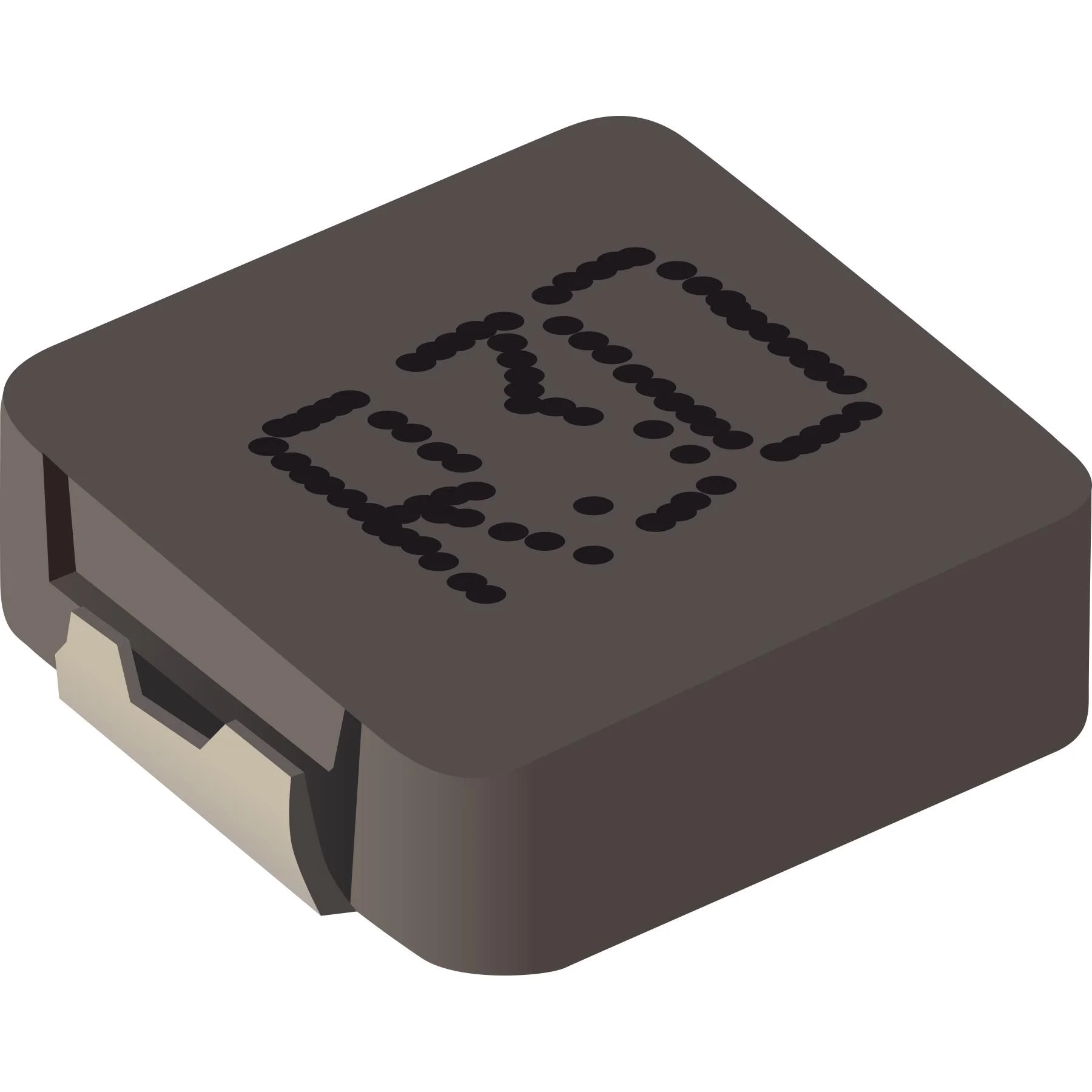

FIXED IND 680NH 5A 35.1 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRP0310F-R68M.
SRP0310F-R68M has an inductance value of 680 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRP0310F-R68M is rated for 5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRP0310F-R68M lists a DC resistance of 35.1mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRP0310F-R68M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRP0310F-R68M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 680 nH |
| Tolerance | ±20% |
| Current Rating | 5 A |
| DC Resistance (DCR) | 35.1mOhm Max |
| Saturation Current | 6A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.130" L x 0.122" W (3.30mm x 3.10mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 680NH 5A 35.1 MOHM SMD |
| Series | SRP0310F |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | Metal |
| Shielding | Shielded |
| Q @ Frequency | 5 @ 100MHz |
| Self Resonant Frequency | 75MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.039" (1.00mm) |
