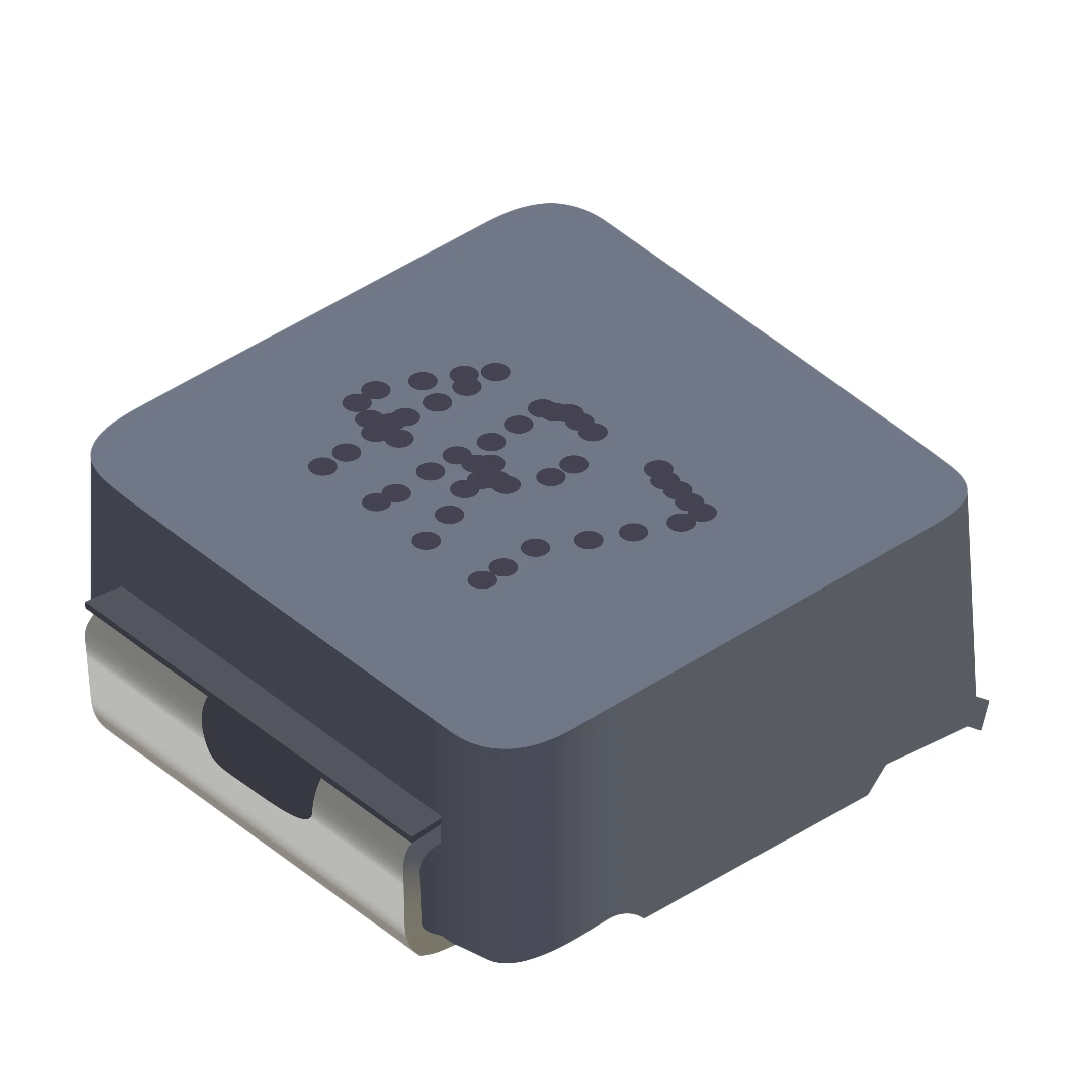

FIXED IND 4.7UH 4.7A 69 MOHM SMD
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating | 4.7 A |
| DC Resistance (DCR) | 69mOhm Max |
| saturationCurrent | 5.8A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.169" L x 0.165" W (4.30mm x 4.20mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 4.7UH 4.7A 69 MOHM SMD |
| Series | SRP4021HMCT |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | Metal |
| shielding | Shielded |
| qFactor | 15 @ 100kHz |
| selfResonantFreq | 25MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.083" (2.10mm) |
| features | - |
