SRP4021HMCT-100M
Bourns Inc.
- Inductance
- 10 µH
- Current
- 3.1 A
- DCR
- 145mOhm Max
- Size
- 0.169" L x 0.165" W (4.30mm x 4.20mm)
Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: SRP4021HMCT
Browse series tables and compare the available specifications.
SRP4021HMCT
SRP4021HMCT-R68M
Bourns Inc.
- Inductance
- 680 nH
- Current
- 11 A
- DCR
- 9.9mOhm Max
- Size
- 0.169" L x 0.165" W (4.30mm x 4.20mm)
SRP4021HMCT-8R2M
Bourns Inc.
- Inductance
- 8.2 µH
- Current
- 3.3 A
- DCR
- 121mOhm Max
- Size
- 0.169" L x 0.165" W (4.30mm x 4.20mm)
SRP4021HMCT-R15M
Bourns Inc.
- Inductance
- 150 nH
- Current
- 16.5 A
- DCR
- 3.8mOhm Max
- Size
- 0.169" L x 0.165" W (4.30mm x 4.20mm)
SRP4021HMCT-R47M
Bourns Inc.
- Inductance
- 470 nH
- Current
- 13 A
- DCR
- 7.2mOhm Max
- Size
- 0.169" L x 0.165" W (4.30mm x 4.20mm)

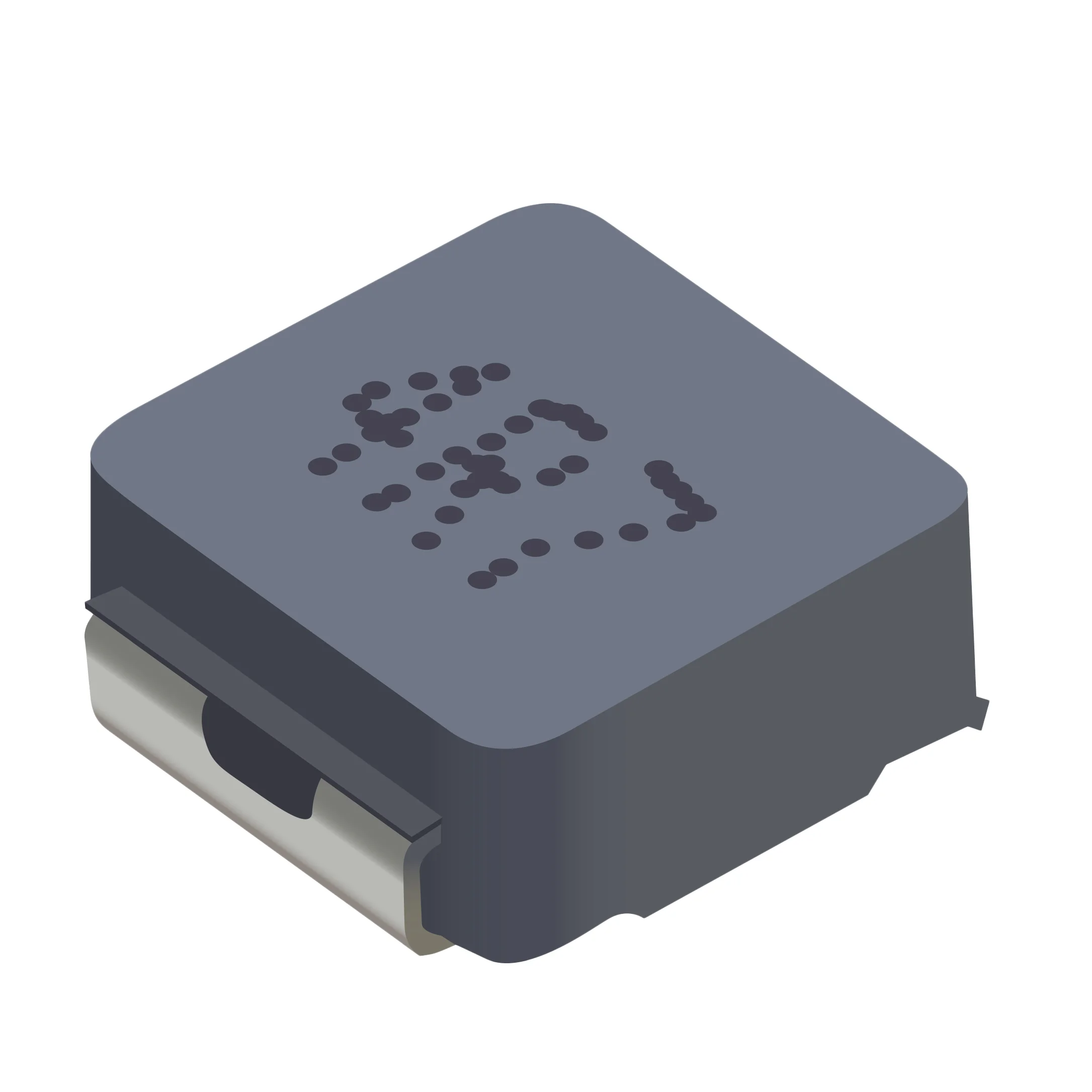

SRP4021HMCT-R33M
Bourns Inc.
- Inductance
- 330 nH
- Current
- 15 A
- DCR
- 5.8mOhm Max
- Size
- 0.169" L x 0.165" W (4.30mm x 4.20mm)
SRP4021HMCT-R10M
Bourns Inc.
- Inductance
- 100 nH
- Current
- 19 A
- DCR
- 2.3mOhm Max
- Size
- 0.169" L x 0.165" W (4.30mm x 4.20mm)
SRP4021HMCT-3R3M
Bourns Inc.
- Inductance
- 3.3 µH
- Current
- 5.5 A
- DCR
- 49.2mOhm Max
- Size
- 0.169" L x 0.165" W (4.30mm x 4.20mm)
SRP4021HMCT-1R5M
Bourns Inc.
- Inductance
- 1.5 µH
- Current
- 9 A
- DCR
- 18.5mOhm Max
- Size
- 0.169" L x 0.165" W (4.30mm x 4.20mm)
SRP4021HMCT-1R0M
Bourns Inc.
- Inductance
- 1 µH
- Current
- 10 A
- DCR
- 13.8mOhm Max
- Size
- 0.169" L x 0.165" W (4.30mm x 4.20mm)
SRP4021HMCT-2R2M
Bourns Inc.
- Inductance
- 2.2 µH
- Current
- 7.2 A
- DCR
- 30mOhm Max
- Size
- 0.169" L x 0.165" W (4.30mm x 4.20mm)
SRP4021HMCT-5R6M
Bourns Inc.
- Inductance
- 5.6 µH
- Current
- 4.1 A
- DCR
- 78.2mOhm Max
- Size
- 0.169" L x 0.165" W (4.30mm x 4.20mm)
SRP4021HMCT-6R8M
Bourns Inc.
- Inductance
- 6.8 µH
- Current
- 3.8 A
- DCR
- 92.5mOhm Max
- Size
- 0.169" L x 0.165" W (4.30mm x 4.20mm)
SRP4021HMCT-4R7M
Bourns Inc.
- Inductance
- 4.7 µH
- Current
- 4.7 A
- DCR
- 69mOhm Max
- Size
- 0.169" L x 0.165" W (4.30mm x 4.20mm)
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
SRP4021HMCT-100M Bourns Inc. | 10 µH | 3.1 A | 145mOhm Max | 0.169" L x 0.165" W (4.30mm x 4.20mm) | Nonstandard | |
SRP4021HMCT-R68M Bourns Inc. | 680 nH | 11 A | 9.9mOhm Max | 0.169" L x 0.165" W (4.30mm x 4.20mm) | Nonstandard | |
SRP4021HMCT-8R2M Bourns Inc. | 8.2 µH | 3.3 A | 121mOhm Max | 0.169" L x 0.165" W (4.30mm x 4.20mm) | Nonstandard | |
SRP4021HMCT-R15M Bourns Inc. | 150 nH | 16.5 A | 3.8mOhm Max | 0.169" L x 0.165" W (4.30mm x 4.20mm) | Nonstandard | |
SRP4021HMCT-R47M Bourns Inc. | 470 nH | 13 A | 7.2mOhm Max | 0.169" L x 0.165" W (4.30mm x 4.20mm) | Nonstandard | |
SRP4021HMCT-R33M Bourns Inc. | 330 nH | 15 A | 5.8mOhm Max | 0.169" L x 0.165" W (4.30mm x 4.20mm) | Nonstandard | |
SRP4021HMCT-R10M Bourns Inc. | 100 nH | 19 A | 2.3mOhm Max | 0.169" L x 0.165" W (4.30mm x 4.20mm) | Nonstandard | |
SRP4021HMCT-3R3M Bourns Inc. | 3.3 µH | 5.5 A | 49.2mOhm Max | 0.169" L x 0.165" W (4.30mm x 4.20mm) | Nonstandard | |
SRP4021HMCT-1R5M Bourns Inc. | 1.5 µH | 9 A | 18.5mOhm Max | 0.169" L x 0.165" W (4.30mm x 4.20mm) | Nonstandard | |
SRP4021HMCT-1R0M Bourns Inc. | 1 µH | 10 A | 13.8mOhm Max | 0.169" L x 0.165" W (4.30mm x 4.20mm) | Nonstandard | |
SRP4021HMCT-2R2M Bourns Inc. | 2.2 µH | 7.2 A | 30mOhm Max | 0.169" L x 0.165" W (4.30mm x 4.20mm) | Nonstandard | |
SRP4021HMCT-5R6M Bourns Inc. | 5.6 µH | 4.1 A | 78.2mOhm Max | 0.169" L x 0.165" W (4.30mm x 4.20mm) | Nonstandard | |
SRP4021HMCT-6R8M Bourns Inc. | 6.8 µH | 3.8 A | 92.5mOhm Max | 0.169" L x 0.165" W (4.30mm x 4.20mm) | Nonstandard | |
SRP4021HMCT-4R7M Bourns Inc. | 4.7 µH | 4.7 A | 69mOhm Max | 0.169" L x 0.165" W (4.30mm x 4.20mm) | Nonstandard |
