Description

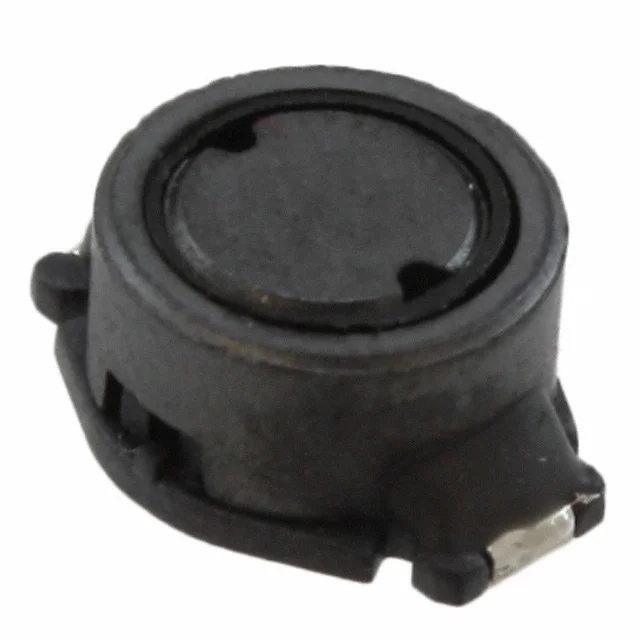

FIXED IND 120UH 450MA 750 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRR0805-121K.
SRR0805-121K has an inductance value of 120 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRR0805-121K is rated for 450 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRR0805-121K lists a DC resistance of 750mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRR0805-121K uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRR0805-121K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 120 µH |
| Tolerance | ±10% |
| Current Rating | 450 mA |
| DC Resistance (DCR) | 750mOhm Max |
| Saturation Current | 660mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.413" L x 0.315" W (10.50mm x 8.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 120UH 450MA 750 MOHM |
| Series | SRR0805 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 42 @ 796kHz |
| Self Resonant Frequency | 7MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.185" (4.70mm) |
