Inductor Datasheets

Browse and download PDF datasheets for inductors from leading manufacturers.

Product Attributes

All Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8063)TDK (7746)Abracon (6926)Coilcraft (5980)

SRR0805-221K

Bourns Inc.

220 µH• 300 mANonstandard

SRR0805-121K

Bourns Inc.

120 µH• 450 mANonstandard

SRR0805-681K

Bourns Inc.

680 µH• 170 mANonstandard

SRR0805-151K

Bourns Inc.

150 µH• 400 mANonstandard

SRR0805-180Y

Bourns Inc.

18 µH• 1.2 ANonstandard

SRR0805-181K

Bourns Inc.

180 µH• 350 mANonstandard

SRR0805-271K

Bourns Inc.

270 µH• 270 mANonstandard

SRR0805-330Y

Bourns Inc.

33 µH• 920 mANonstandard

SRR0805-390Y

Bourns Inc.

39 µH• 840 mANonstandard

SRR0805-3R9M

Bourns Inc.

3.9 µH• 2.1 ANonstandard

SRR0805-471K

Bourns Inc.

470 µH• 200 mANonstandard

SRR0805-561K

Bourns Inc.

560 µH• 180 mANonstandard

SRR0805-6R8M

Bourns Inc.

6.8 µH• -Nonstandard

SRR0805-821K

Bourns Inc.

820 µH• 160 mANonstandard

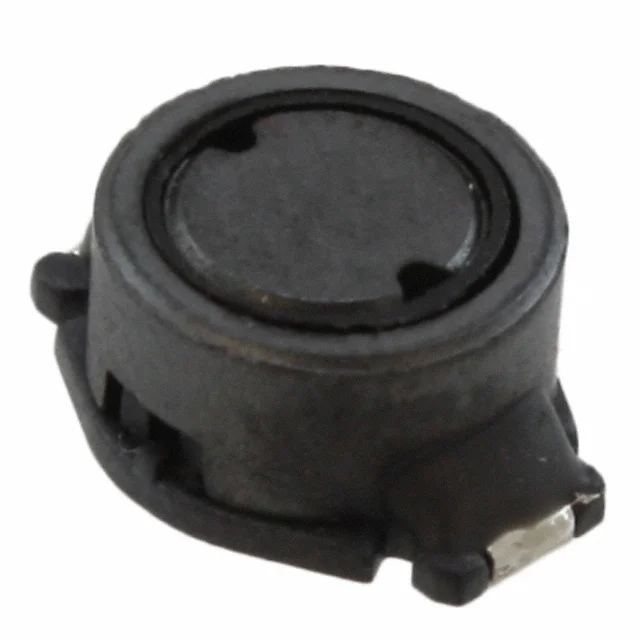

SRR0805-150M

Bourns Inc.

15 µH• 1.3 ANonstandard

SRR0805-680K

Bourns Inc.

68 µH• 600 mANonstandard

SRR0805-101K

Bourns Inc.

100 µH• 500 mANonstandard

SRR0805-100M

Bourns Inc.

10 µH• 1.5 ANonstandard

SRR0805-331K

Bourns Inc.

330 µH• 240 mANonstandard

SRR0805-220Y

Bourns Inc.

22 µH• 1.1 ANonstandard

SRR0805-470Y

Bourns Inc.

47 µH• 750 mANonstandard

SRR0805-102K

Bourns Inc.

1 mH• 150 mANonstandard

SRR0805-2R2M

Bourns Inc.

2.2 µH• 2.5 ANonstandard

SRR0805-560K

Bourns Inc.

56 µH• 680 mANonstandard

SRR0805-820K

Bourns Inc.

82 µH• 540 mANonstandard

Product	Inductance	Current	DCR	Size	Package	Actions
SRR0805-221K Bourns Inc.	220 µH	300 mA	1.18Ohm Max	0.413" L x 0.315" W (10.50mm x 8.00mm)	Nonstandard	View PDF
SRR0805-121K Bourns Inc.	120 µH	450 mA	750mOhm Max	0.413" L x 0.315" W (10.50mm x 8.00mm)	Nonstandard	View PDF
SRR0805-681K Bourns Inc.	680 µH	170 mA	3.4Ohm Max	0.413" L x 0.315" W (10.50mm x 8.00mm)	Nonstandard	View PDF
SRR0805-151K Bourns Inc.	150 µH	400 mA	900mOhm Max	0.413" L x 0.315" W (10.50mm x 8.00mm)	Nonstandard	View PDF
SRR0805-180Y Bourns Inc.	18 µH	1.2 A	160mOhm Max	0.413" L x 0.315" W (10.50mm x 8.00mm)	Nonstandard	View PDF
SRR0805-181K Bourns Inc.	180 µH	350 mA	1.05Ohm Max	0.413" L x 0.315" W (10.50mm x 8.00mm)	Nonstandard	View PDF
SRR0805-271K Bourns Inc.	270 µH	270 mA	1.4Ohm Max	0.413" L x 0.315" W (10.50mm x 8.00mm)	Nonstandard	View PDF
SRR0805-330Y Bourns Inc.	33 µH	920 mA	240mOhm Max	0.413" L x 0.315" W (10.50mm x 8.00mm)	Nonstandard	View PDF
SRR0805-390Y Bourns Inc.	39 µH	840 mA	260mOhm Max	0.413" L x 0.315" W (10.50mm x 8.00mm)	Nonstandard	View PDF
SRR0805-3R9M Bourns Inc.	3.9 µH	2.1 A	55mOhm Max	0.413" L x 0.315" W (10.50mm x 8.00mm)	Nonstandard	View PDF
SRR0805-471K Bourns Inc.	470 µH	200 mA	2.25Ohm Max	0.413" L x 0.315" W (10.50mm x 8.00mm)	Nonstandard	View PDF
SRR0805-561K Bourns Inc.	560 µH	180 mA	3Ohm Max	0.413" L x 0.315" W (10.50mm x 8.00mm)	Nonstandard	View PDF
SRR0805-6R8M Bourns Inc.	6.8 µH	-	-	0.413" L x 0.315" W (10.50mm x 8.00mm)	Nonstandard	View PDF
SRR0805-821K Bourns Inc.	820 µH	160 mA	4Ohm Max	0.413" L x 0.315" W (10.50mm x 8.00mm)	Nonstandard	View PDF
SRR0805-150M Bourns Inc.	15 µH	1.3 A	140mOhm Max	0.413" L x 0.315" W (10.50mm x 8.00mm)	Nonstandard	View PDF
SRR0805-680K Bourns Inc.	68 µH	600 mA	440mOhm Max	0.413" L x 0.315" W (10.50mm x 8.00mm)	Nonstandard	View PDF
SRR0805-101K Bourns Inc.	100 µH	500 mA	600mOhm Max	0.413" L x 0.315" W (10.50mm x 8.00mm)	Nonstandard	View PDF
SRR0805-100M Bourns Inc.	10 µH	1.5 A	100mOhm Max	0.413" L x 0.315" W (10.50mm x 8.00mm)	Nonstandard	View PDF
SRR0805-331K Bourns Inc.	330 µH	240 mA	1.8Ohm Max	0.413" L x 0.315" W (10.50mm x 8.00mm)	Nonstandard	View PDF
SRR0805-220Y Bourns Inc.	22 µH	1.1 A	180mOhm Max	0.413" L x 0.315" W (10.50mm x 8.00mm)	Nonstandard	View PDF
SRR0805-470Y Bourns Inc.	47 µH	750 mA	280mOhm Max	0.413" L x 0.315" W (10.50mm x 8.00mm)	Nonstandard	View PDF
SRR0805-102K Bourns Inc.	1 mH	150 mA	5Ohm Max	0.413" L x 0.315" W (10.50mm x 8.00mm)	Nonstandard	View PDF
SRR0805-2R2M Bourns Inc.	2.2 µH	2.5 A	40mOhm Max	0.413" L x 0.315" W (10.50mm x 8.00mm)	Nonstandard	View PDF
SRR0805-560K Bourns Inc.	56 µH	680 mA	380mOhm Max	0.413" L x 0.315" W (10.50mm x 8.00mm)	Nonstandard	View PDF
SRR0805-820K Bourns Inc.	82 µH	540 mA	550mOhm Max	0.413" L x 0.315" W (10.50mm x 8.00mm)	Nonstandard	View PDF
