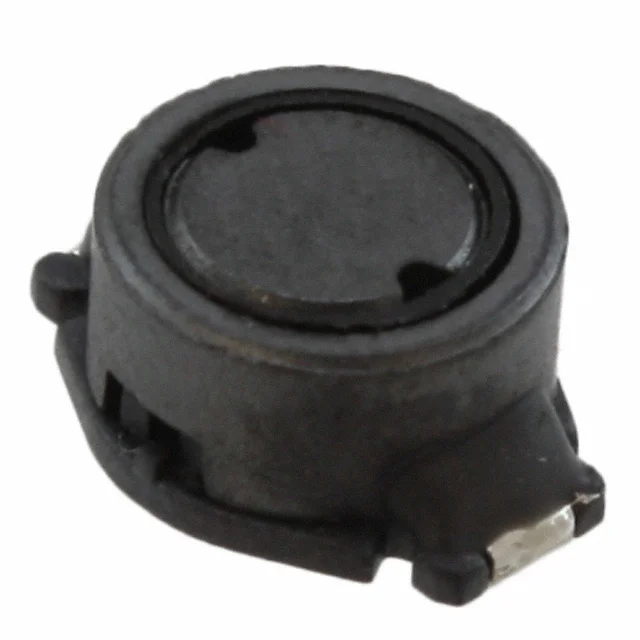

FIXED IND 18UH 1.2A 160 MOHM SMD
| Inductance | 18 µH |
| Tolerance | ±15% |
| Current Rating | 1.2 A |
| DC Resistance (DCR) | 160mOhm Max |
| saturationCurrent | 1.7A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.413" L x 0.315" W (10.50mm x 8.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 18UH 1.2A 160 MOHM SMD |
| Series | SRR0805 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 40 @ 2.52MHz |
| selfResonantFreq | 19MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.185" (4.70mm) |
| features | - |
