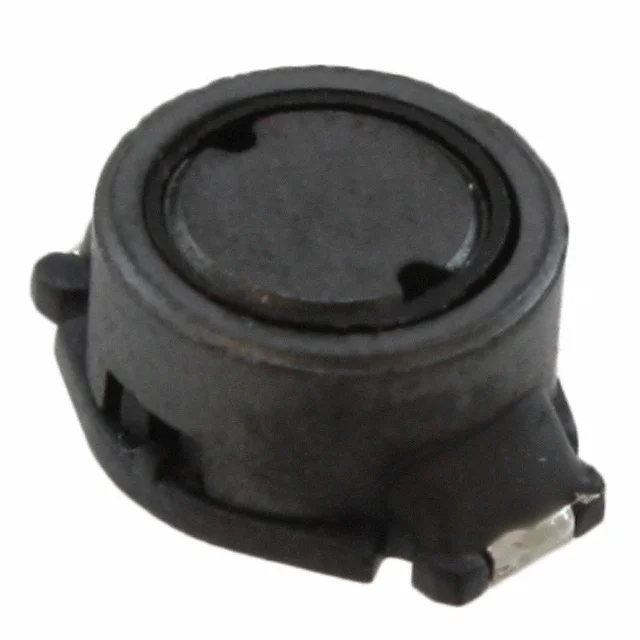

FIXED IND 2.2UH 2.5A 40 MOHM SMD
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 2.5 A |
| DC Resistance (DCR) | 40mOhm Max |
| saturationCurrent | 4.9A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.413" L x 0.315" W (10.50mm x 8.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 2.2UH 2.5A 40 MOHM SMD |
| Series | SRR0805 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 18 @ 7.96MHz |
| selfResonantFreq | 75MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.185" (4.70mm) |
| features | - |
