Description

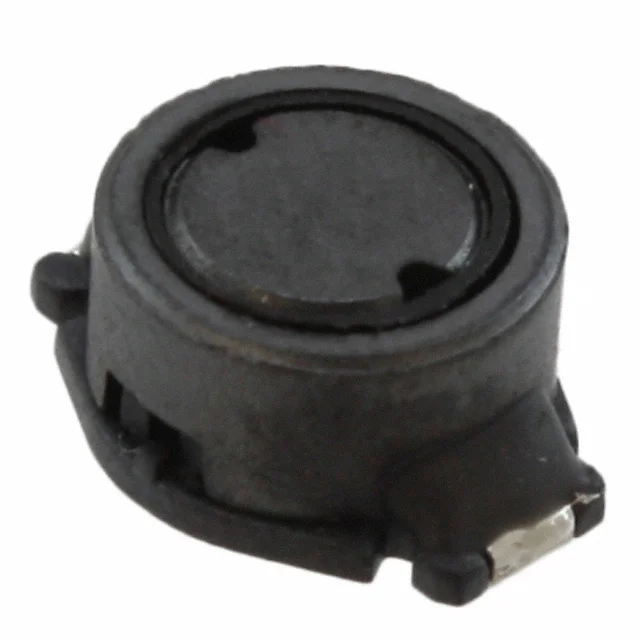

FIXED IND 560UH 180MA 3 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRR0805-561K.
SRR0805-561K has an inductance value of 560 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRR0805-561K is rated for 180 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRR0805-561K lists a DC resistance of 3Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRR0805-561K uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRR0805-561K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 560 µH |
| Tolerance | ±10% |
| Current Rating | 180 mA |
| DC Resistance (DCR) | 3Ohm Max |
| Saturation Current | 340mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.413" L x 0.315" W (10.50mm x 8.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 560UH 180MA 3 OHM SMD |
| Series | SRR0805 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 32 @ 796kHz |
| Self Resonant Frequency | 3MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.185" (4.70mm) |
