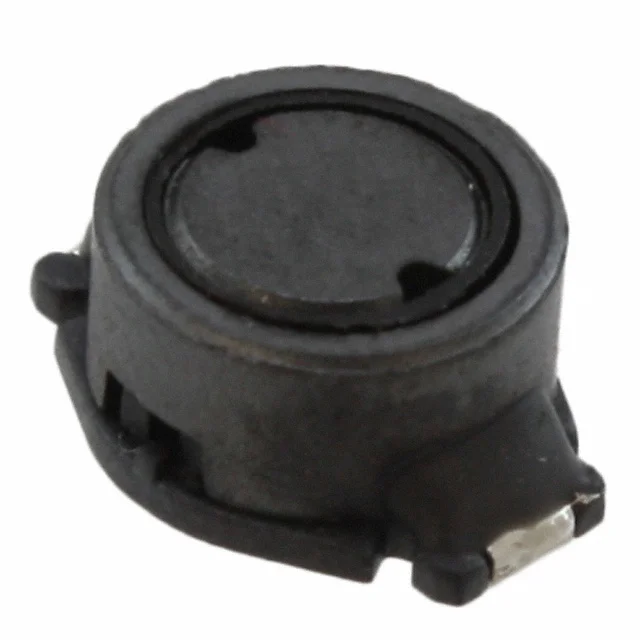

FIXED IND 8.2UH 1.75A 80 MOHM
| Inductance | 8.2 µH |
| Tolerance | ±20% |
| Current Rating | 1.75 A |
| DC Resistance (DCR) | 80mOhm Max |
| saturationCurrent | 2.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.413" L x 0.315" W (10.50mm x 8.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 8.2UH 1.75A 80 MOHM |
| Series | SRR0805 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 19 @ 7.96MHz |
| selfResonantFreq | 32MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.185" (4.70mm) |
| features | - |
