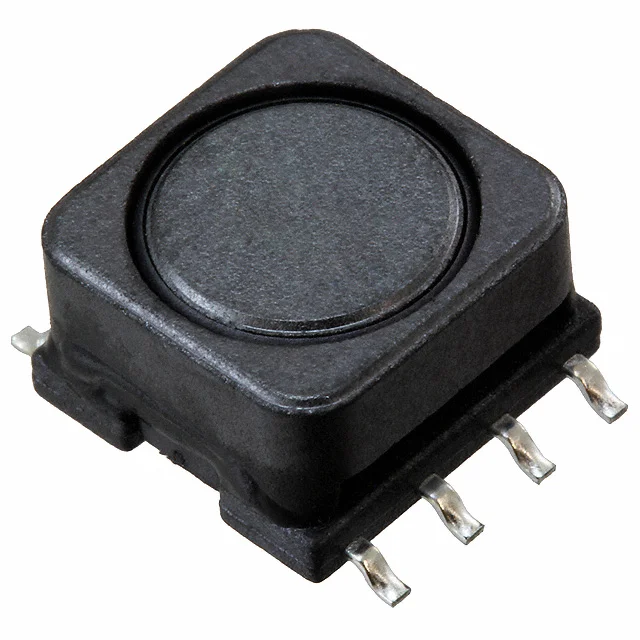

FIXED IND 2.7UH 3.2A 32 MOHM SMD
| Inductance | 2.7 µH |
| Tolerance | ±20% |
| Current Rating | 3.2 A |
| DC Resistance (DCR) | 32mOhm Max |
| saturationCurrent | 5.8A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.394" L x 0.374" W (10.00mm x 9.50mm) |
| Case / Size | 8-SMD, Gull Wing |
| Supplier | Bourns Inc. |
| Description | FIXED IND 2.7UH 3.2A 32 MOHM SMD |
| Series | SRR0906 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 23 @ 7.96MHz |
| selfResonantFreq | 85MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.248" (6.30mm) |
| features | - |
