Description

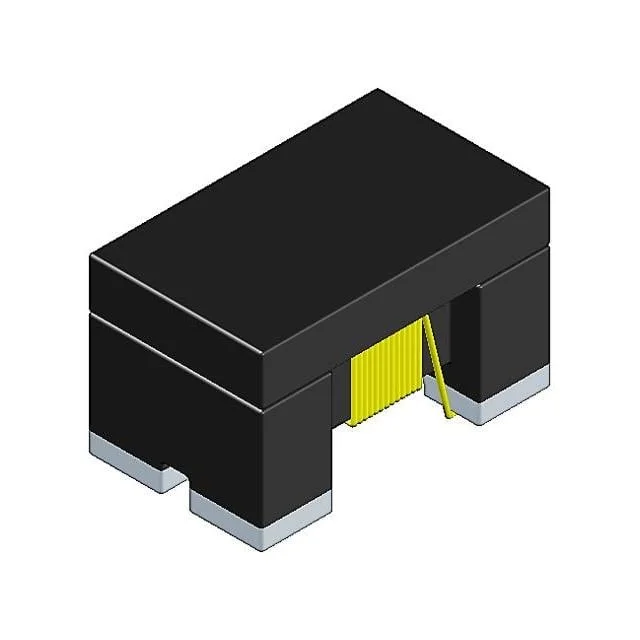

FIXED IND 22UH 340MA 1.76 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SWF 2012RIF-220M.
SWF 2012RIF-220M has an inductance value of 22 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SWF 2012RIF-220M is rated for 340 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SWF 2012RIF-220M lists a DC resistance of 1.76Ohm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SWF 2012RIF-220M uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SWF 2012RIF-220M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating | 340 mA |
| DC Resistance (DCR) | 1.76Ohm |
| Saturation Current | 240mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.087" L x 0.055" W (2.20mm x 1.40mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | TAI-TECH |
| Description | FIXED IND 22UH 340MA 1.76 OHM |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 15 @ 2.5MHz |
| Self Resonant Frequency | 20MHz |
| Inductance Test Frequency | 2.5 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 |
| Height - Seated (Max) | 0.055" (1.40mm) |
