Description

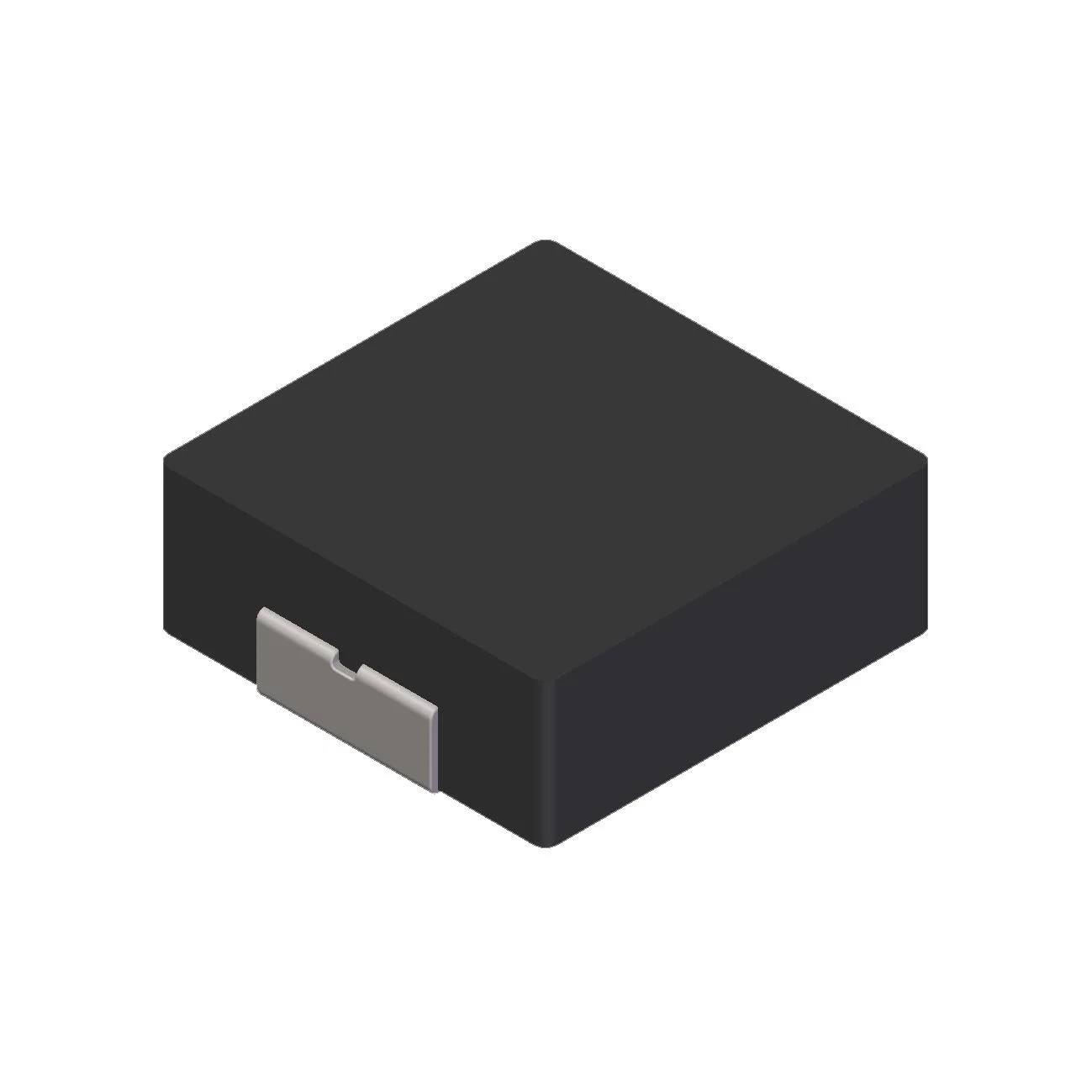

FIXED IND 680NH 10A 9.9 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for THMC0421SP-R68MG.
THMC0421SP-R68MG has an inductance value of 680 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
THMC0421SP-R68MG is rated for 10 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
THMC0421SP-R68MG lists a DC resistance of 9.9mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
THMC0421SP-R68MG uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from THMC0421SP-R68MG to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 680 nH |
| Tolerance | ±20% |
| Current Rating | 10 A |
| DC Resistance (DCR) | 9.9mOhm Max |
| Saturation Current | 10A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.169" L x 0.161" W (4.30mm x 4.10mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | TAI-TECH |
| Description | FIXED IND 680NH 10A 9.9 MOHM SMD |
| Series | THMC0421SP-G |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Metal |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.083" (2.10mm) |
