Description

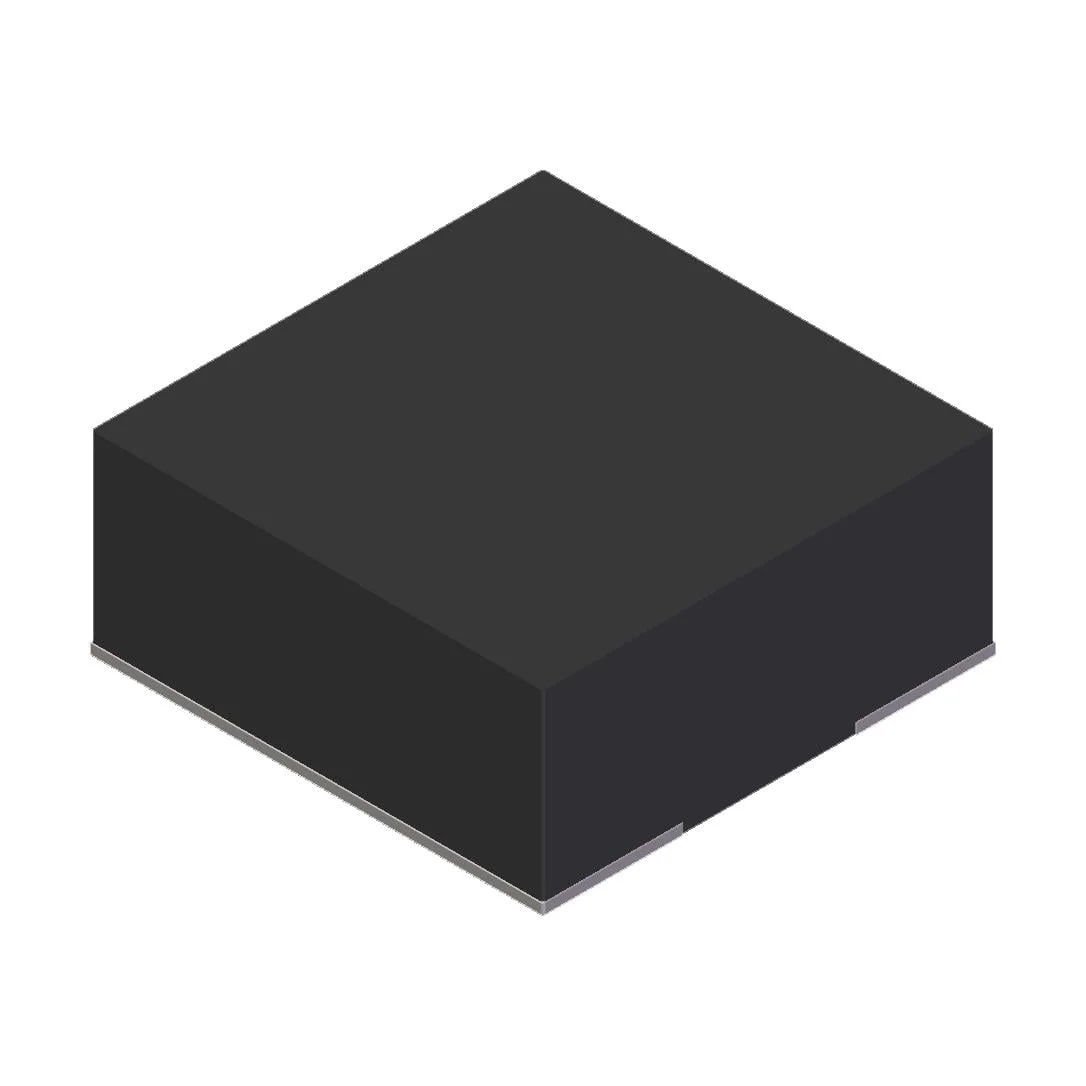

FIXED IND 680NH 11A 6.6 MOHM SMD
Specifications
Inductance
680 nH
Current Rating
11 A
DC Resistance (DCR)
6.6mOhm Max
Dimensions
0.161" L x 0.161" W (4.10mm x 4.10mm)
Product Attributes
Manufacturer Verified
Last verified: 6/21/2026| Inductance | 680 nH |
| Tolerance | ±20% |
| Current Rating | 11 A |
| DC Resistance (DCR) | 6.6mOhm Max |
| saturationCurrent | 11A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.161" L x 0.161" W (4.10mm x 4.10mm) |
| Case / Size | Nonstandard |
| Supplier | TAI-TECH |
| Description | FIXED IND 680NH 11A 6.6 MOHM SMD |
| Series | TMIM0402S |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | Metal |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.079" (2.00mm) |
| features | - |
