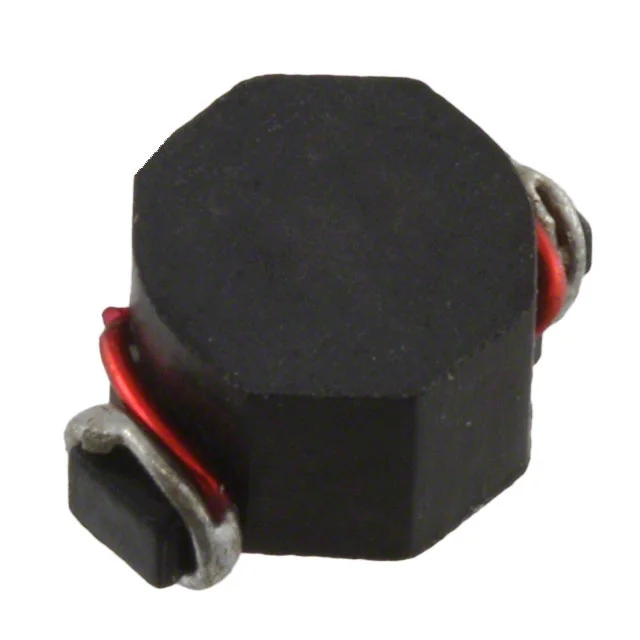

FIXED IND 470NH 6A 9.7 MOHM SMD
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating | 6 A |
| DC Resistance (DCR) | 9.7mOhm Max |
| saturationCurrent | 7.7A |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.350" L x 0.240" W (8.89mm x 6.10mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 470NH 6A 9.7 MOHM SMD |
| Series | UNI-PAC™ |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.197" (5.00mm) |
| features | - |
