Description

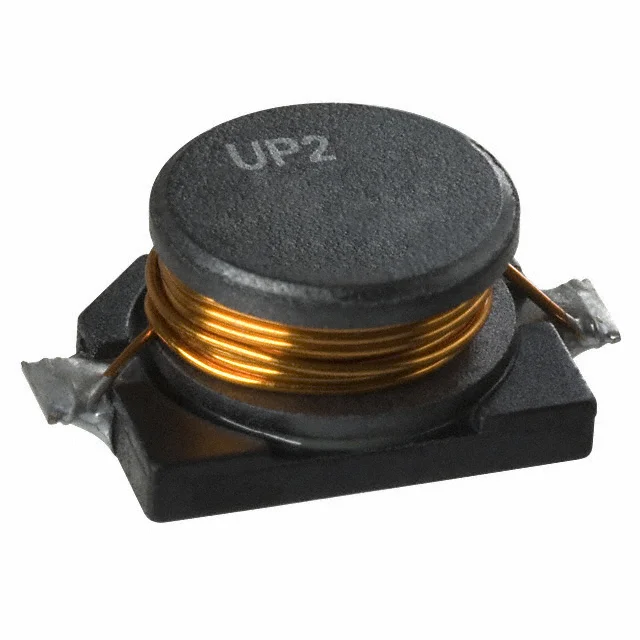

FIXED IND 330UH 760MA 977.5 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for UP2-331-R.
UP2-331-R has an inductance value of 330 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
UP2-331-R is rated for 760 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
UP2-331-R lists a DC resistance of 977.5mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
UP2-331-R uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from UP2-331-R to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating | 760 mA |
| DC Resistance (DCR) | 977.5mOhm Max |
| Saturation Current | 510mA |
| Dimensions | 0.541" L x 0.345" W (13.74mm x 8.76mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 330UH 760MA 977.5 MOHM |
| Series | UNI-PAC™ 2 |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.231" (5.86mm) |
