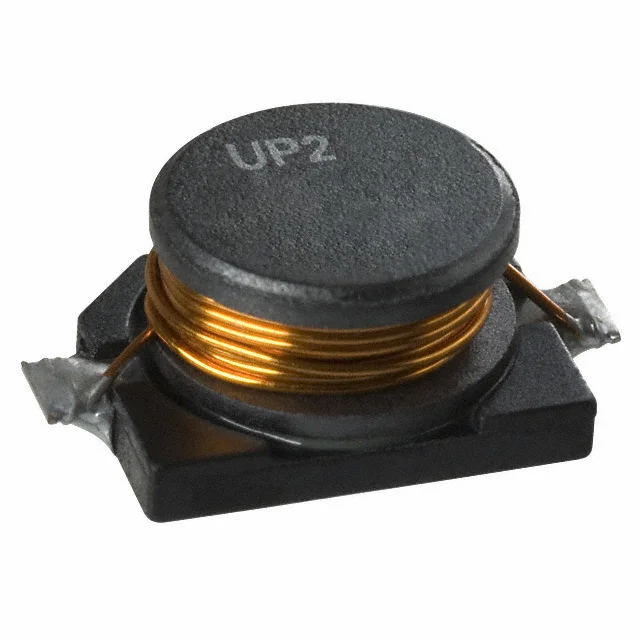

FIXED IND 68UH 1.7A 189.8 MOHM
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating | 1.7 A |
| DC Resistance (DCR) | 189.8mOhm Max |
| saturationCurrent | 1.2A |
| Operating Temperature | - |
| Dimensions | 0.541" L x 0.345" W (13.74mm x 8.76mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 68UH 1.7A 189.8 MOHM |
| Series | UNI-PAC™ 2 |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.231" (5.86mm) |
| features | - |
