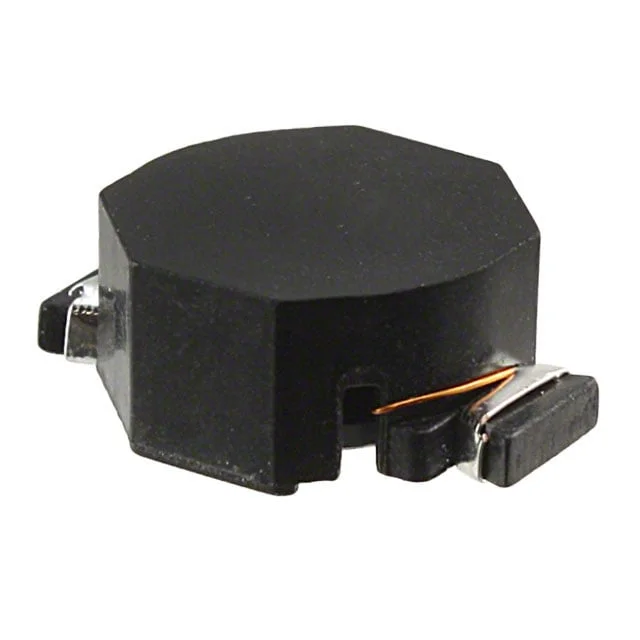

FIXED IND 330UH 676MA 878.3 MOHM
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating | 676 mA |
| DC Resistance (DCR) | 878.3mOhm Max |
| saturationCurrent | 510mA |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.550" L x 0.410" W (13.97mm x 10.41mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 330UH 676MA 878.3 MOHM |
| Series | UNI-PAC™ |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.236" (6.00mm) |
| features | - |
