Description

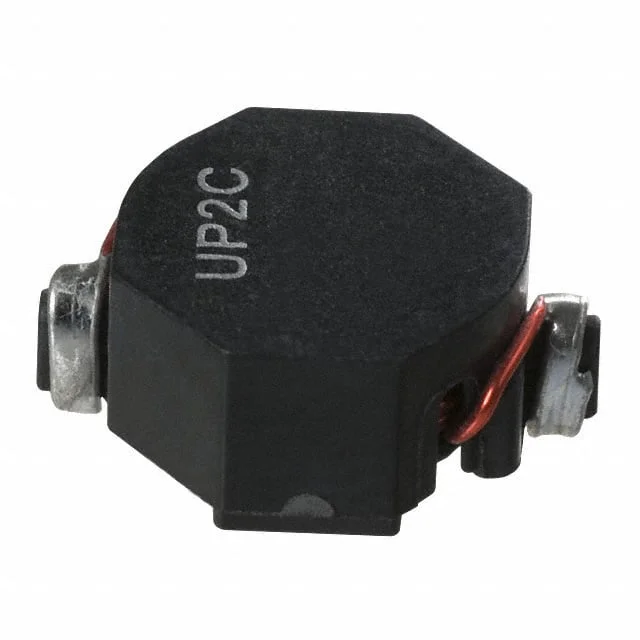

FIXED IND 1UH 9.8A 3.9 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for UP2C-1R0-R.
UP2C-1R0-R has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
UP2C-1R0-R is rated for 9.8 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
UP2C-1R0-R lists a DC resistance of 3.9mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
UP2C-1R0-R uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from UP2C-1R0-R to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 9.8 A |
| DC Resistance (DCR) | 3.9mOhm |
| Saturation Current | 11.8A |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.508" L x 0.370" W (12.90mm x 9.40mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Eaton - Electronics Division,WEC |
| Description | FIXED IND 1UH 9.8A 3.9 MOHM SMD |
| Series | UNI-PAC™ 2C |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | - |
| Self Resonant Frequency | - |
| Ratings | - |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.205" (5.20mm) |
| Features | - |
